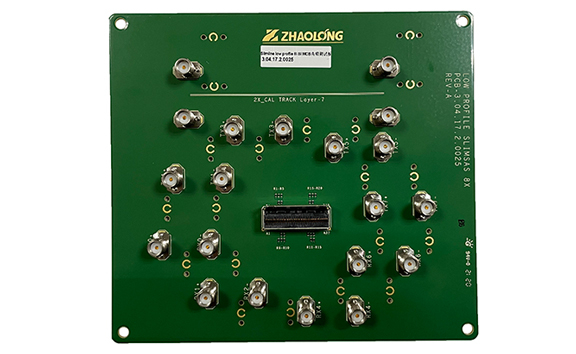

SlimSAS low profile 8i SI Test Fixture

Compliant to SAS5.0 ,PCIe5.0, test fixture specifications.
Availability:
Quantity:
Inquire Add to Basket

SlimSAS low profile 8i SI Test Fixture

  • SlimSAS

  • zhaolong

SPECIFICATION
Impedance : 100Ω
Calibration Traces (2x)
Enables accurate de-embedding of test fixture trace loss
