Full Analysis on the "Flash"--EtherCAT Cable Assemblies and the "Iron Man"--PROFINET Cable Assemblies of Zhaolong

In the vast realm of industrial Ethernet, EtherCAT is like "The Flash", and PROFINET is like "Iron Man". Both possess distinct yet equally outstanding characteristics and each exhibits unique charm on the stage of industrial automation. This article will guide you through the differences and similarities between EtherCAT and PROFINET, acquaint you with the features and advantages of Zhaolongg EtherCAT and PROFINET cable assemblies, and help you understand the selection criteria of EtherCAT and PROFINET cable assemblies.

EtherCAT cable - The Flash of Speed and Flexibility

EtherCAT cable was endowed with a "fast and accurate" superpower. Its data transmission is as swift as lightning. In scenarios such as automated precision machining production lines, instructions can reach every corner of the device instantaneously, with an extremely low microsecond latency. Its "Seamless Connection and Communication via A Single Network" architecture enables data frames to switch rapidly between nodes for processing. In large factories with complex network topologies, such as linear and tree structures, it can be effortlessly controlled. Moreover, the redundancy of EtherCAT cable ensures uninterrupted transmission even when some electrical circuit encounter problems.

PROFINET Cable - The Stable and Reliable "Iron Man"

PROFINET cable, similar to "Iron Man", is based on mature industrial Ethernet technology and ensures stable data interaction in various industrial environments. With extensive component support and cross-vendor collaboration, it can collaborate with many different brands of equipment in the field of industrial automation. For instance, in the construction of large-scale smart factories, it can integrate multi-manufacturer equipment to work together and performs well in terms of equipment connection stability and system integration complexity.

In industrial applications, where multi-axis/polyarticular robots collaborate in high-speed automated packaging lines, EtherCAT cable's speed and flexibility shine. When large-scale industrial system integration demands stable and reliable communication and multi-brand equipment collaboration, PROFINET cable is the top choice due to its solid performance and excellent compatibility, laying a solid foundation for the stable operation of industrial systems.

Regarding Zhaolong PROFINET Cable Assemblies and EtherCAT Cable Assemblies

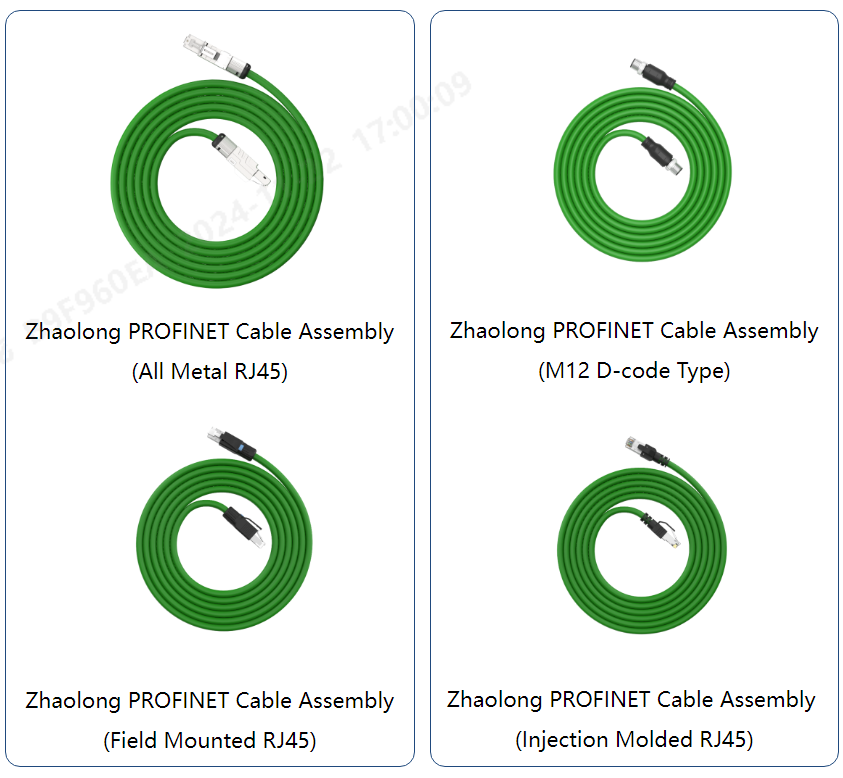

• Zhaolong PROFINET Cable Assemblies

Zhaolong’s PROFINET cable assembly is designed for the PROFINET protocol and is widely utilized in industrial Ethernet applications, such as the connection of information management platform devices in the industrial automation field and the data interconnection of industrial equipment. It is also applicable to mainstream industrial EtherNet protocols like PROFINET, EtherCAT, and EtherNet/IP.

Zhaolong’s PROFINET cable assembly mainly consists of Zhaolong PROFINET cables and connectors. Zhaolong PROFINET cables mainly comprise cables with excellent CAT5e electrical performance and flame retardant performance in accordance with IEC 60332-1 standards. The highly flexible cable demonstrates excellent drag chain/torsion resistance and can support 5 million cycles of drag chain/torsion applications. Based on the application scenario, Zhaolong PROFINET cables can be classified into four categories: TYPE A (for fixed installation), TYPE B (for occasional moving scenarios), TYPE C (for towing chain scenarios), and TYPE R (for robot applications) to meet the requirements of diverse industrial environments. Additionally, the Zhaolong PROFINET TYPE A and TYPE B cable assemblies operate stably within a wide temperature range from -40 °C to 80°C and are designed with special shielding to effectively deal with electromagnetic interference.

Connectors are available in RJ45 and M12 D models, including injection molded and field-mounted types. The M12 Type D connector housing has IP67 & IP68 protection levels and is manufactured with precision, meeting numerous standards. The RJ45 connector has an insertion and removal life of at least 750 times, and the injection-molded RJ45 connector offers both cost and performance advantages.

The Zhaolong PROFINET cable assemblies offer significant advantages in easy installation without the need for professional personnel and complex tools. All performance is strictly verified before leaving the factory, which can provide a reliable and efficient solution for industrial Ethernet connection, effectively ensuring the stable operation of the industrial network and efficient data transmission.

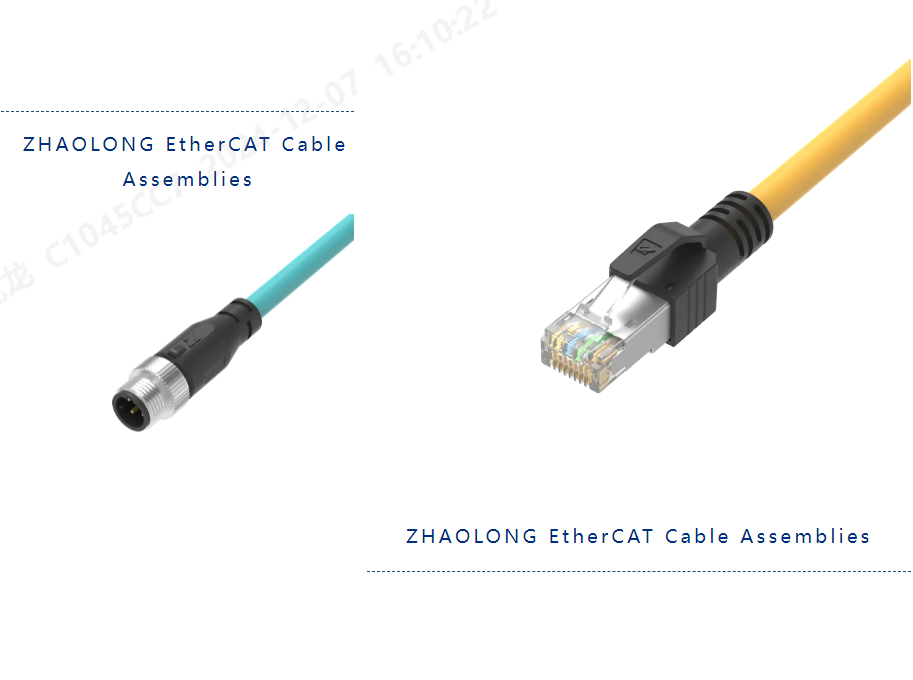

The Zhaolong EtherCAT cable assemblies are widely utilized in the industrial Ethernet field, suitable for the wiring of machines, equipment, instruments, and control cabinets, and their performance meets the CAT5e standard. They are dedicated to EtherCAT and can be used in fixed, occasional, or frequent movement situations.

The flame retardant performance of Zhaolong EtherCAT cable complies with the requirements of IEC 60332-1-2. And the Zhaolong EtherCAT cable also has excellent resistance to external electromagnetic interference. Besides, it can withstand 5 million cycles of the towing chain test. It has superior transmission performance, and the PUR sheath is also equipped with outstanding oil resistance, wear resistance, and hydrolysis resistance. It can effectively meet the needs of many industrial Ethernet applications and ensure stable and reliable operation.

The connectors include RJ45-type and M12 D-type connectors, both injection molded and field-mounted, with sophisticated manufacturing processes and in compliance with multiple standards. Among them, the RJ45 injection molded connector is economical and practical, with excellent electrical performance and cost advantages. The M12 connector is protected with IP67 & IP68, being dust and water resistant, ensuring a stable and reliable connection in complex and harsh industrial environments. These two connectors are favored and preferred by our clients for their outstanding performance in industrial connectivity applications.

Selection Criteria for EtherCAT and PROFINET Cable Assemblies

Firstly, wiring space and joint adaptation balance. The cable product should be selected based on the size of the connector. Additionally, it should be determined according to the size of the wiring space. Generally, EtherCAT cables are thinner. For example, the Zhaolong SF/UTP CAT5e 4x22AWG/1 PROFINET cable has an outer diameter of 6.5mm, while the Zhaolong SF/UTP CAT5e 2x2x26AWG/7 EtherCAT cable has an outer diameter of only 5.7mm. In scenarios where space is limited or cabling thickness is required, the advantages of EtherCAT cables may be more suitable.

Secondly, network topology adaptation. In complex network environments that require flexible combinations of topologies, such as automated production lines in large factories or intelligent warehousing and logistics systems, EtherCAT cable assemblies can effortlessly establish network connections thanks to their topological adaptability, high flexibility of cables, and a wide variety of connectors. For network topologies that are relatively regular and traditional scenarios, such as some small processing plants or office areas of the industrial network, the PROFINET cable assembly, with its stable connection performance, is sufficient to meet the demand, and its connectors can also ensure a stable and reliable connection state.

Thirdly, attenuation control and long-distance connection. The PROFINET cable has excellent attenuation performance and a longer transmission distance. Its low attenuation can ensure signal quality, reduce the risk of data transmission errors and distortion, and is more advantageous in high-precision data or long-distance scenarios with high signal integrity requirements, such as industrial automation precision measurement control links. In contrast, EtherCAT cables are more attenuated. Therefore, if the project has strict attenuation requirements, the PROFINET cable assembly is a better choice, which can effectively meet the long-term transmission needs and ensure the stability and reliability of the signal.

Fourthly, procurement cost considerations. In terms of procurement costs, the procurement cost of EtherCAT cable assemblies is often lower. In cases where the budget is limited and other performance requirements can be met, EtherCAT cable assemblies can reduce the upfront cost of a project to some extent. However, when considering the overall performance of the project, long-term stability, and specific application needs, the procurement cost cannot be the sole decision-making factor. Instead, a comprehensive evaluation and balance should be carried out in combination with the above criteria to ensure that the most suitable cable assembly solution for the project is selected.

In conclusion, on the stage of industrial Ethernet, EtherCAT and PROFINET are remarkable, and enterprises should fully consider their own needs during the selection process, just like choosing the most suitable members in a superhero team, so as to build an efficient, stable, and adaptable industrial automation communication network for future development.
