PROFINET TYPE C Assemblies M12-RJ45

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application :

         PVC : -40℃~80℃

         PUR : -40℃~80℃

    Mobile Application :

         PVC : -5℃~70℃

         PUR : -20℃~80℃

—Characteristic Impedance

    100±15Ω

—Protection Classification

    IP67

—Coding

    D

—Minimum Bending Radius

    Fixed Application : 8D(D=cable diameter)

    Mobile Application : 15D(D=cable diameter)

—Application of drag chain

    ≥2.5 million times

CABLE CONSTRUCTION

Conductor:

Stranded tinned copper wire

Insulation:

PE

Shielded:

AL/Mylar screen and tinned copper wire braid

Jacket:

PVC

FRNC

Color:

Green(similar to RAL6018)

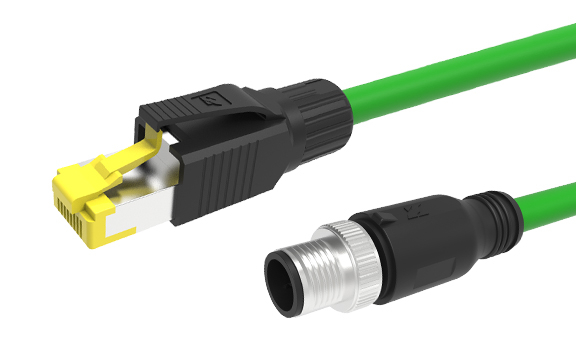

Patchcord with one end of shielded 4 pole M12 connector, other end of RJ45 connector

PROPERTIES

Cable flame resistance according to IEC60332-1

Have excellent performance of resistant to external EMI

Resistant to abrasion and oil,especially for PUR

Long service life

Flexible use,can change equipments easily

Provide a variety of length and sheath

Good performance of CAT5e
