Ethernet Cable Assemblies M12-M12

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application :

         PVC: -20℃~70℃

         LSZH/PUR: -40℃~80℃

    During the Installation :

         PVC/LSZH: -5℃~60℃

         PUR : -20℃~80℃

—Characteristic Impedance

    100±15Ω

—Protection Classification

    IP67

—Minimum Bending Radius

    Fixed Application : 8D(D=cable diameter)

    Occasional Movement : 15D(D=cable diameter)

—Reference Standard

    ANSI/TIA-568-C.2，IEC61076-1-101

CABLE CONSTRUCTION

Conductor:

Stranded copper wire

Insulation:

PE

Shielded:

AL/Mylar screen and tinned coppe rwire braid

Jacket:

PVC

LSZH

PUR

Color:

Black

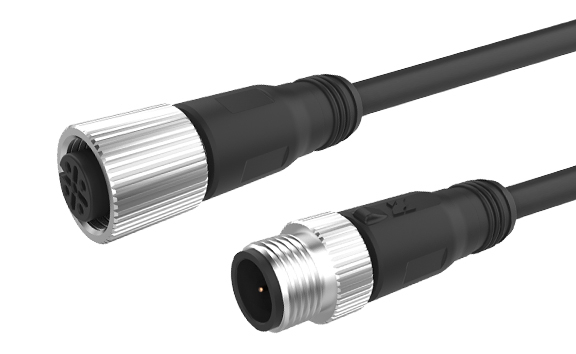

Patchcord with both ends of 4 pole M12 connectors

PROPERTIES

Cable flame resistance according to IEC60332-1

Have excellent performance of resistant to external EMI

Long service life

Flexible use,can change equipments easily

Provide a variety of length and sheath

Good performance of CAT5e
