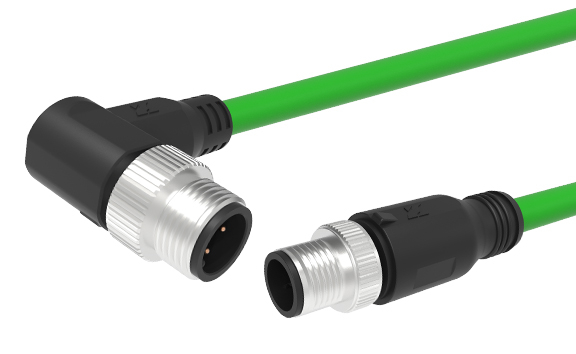

PROFINET TYPE B Assemblies M12-M12

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application :

         PVC : -20℃~70℃

         FRNC : -40℃~80℃

     During the Installation :

         PVC : -5℃~60℃

         FRNC : -5℃~60℃

—Characteristic Impedance

    100±15Ω

—Protection Classification

    IP67

—Coding

    D

—Minimum Bending Radius

    Fixed Application : 8D(D=cable diameter)

    During the Installation : 15D(D=cable diameter)

CABLE CONSTRUCTION

Conductor :

Solid bare copper wire

Insulation :

PE

Shield :

AL/Mylar screen and tinned copper wire braid

Jacket :

PVC

FRNC

Color :

Green( similar to RAL 6018)

Patchcord with both ends of shielded 4 pole M12 connectors

PROPERTIES

Cable flame resistance according to IEC60332-1

Have excellent performance of resistant to external EMI

Long service life

Flexible use, can change equipments easily

Provide a variety of length and sheath

Good performance of CAT5e
