Upgrading Intelligent Medical Devices at Scale: Is the Cable System Ready?

Introduction

A 0.1-second cable delay may cause a surgical robot to deviate 1 millimeter, compromising surgical safety. Insufficient imaging transmission speed could force patients to wait an additional 15 minutes, drastically reducing diagnostic efficiency. These are the "butterfly effects" triggered by cables in the era of intelligent medicine.



The Critical Evolution of Medical Cables

As intelligent medical devices advance toward high-definition imaging, automation, and remote operation, unforeseen "weak links" are emerging. Increasingly, device failures trace back to cable system bottlenecks: aging, interference, unstable transmission, bending fatigue, and breakage.



Key Market Drivers:

n Surgical Robots: Demand for specialized cables grows exponentially.

n Disposable Endoscopes: Driven by minimally invasive surgery popularity.

n Performance Thresholds: Higher data rates (>10 Gbps), enhanced EMI shielding, sub-200μm diameters, and 1M+ bending cycles now define device selection criteria.

Three Technological Inflection Points Reshaping Medical Cables

Inflection Point 1: Diagnostic Precision Revolution

From Millimeter-Level to Microsecond-Level Demands

• AI-Assisted Diagnosis: Image resolution and frame rates surge, requiring cables to transmit 10x more data per second.

• Remote Surgery: Even 0.1-second latency under 5G risks millimeter-level deviations during high-speed maneuvers.

• Electromagnetic Challenges: Multi-modal data (images, EMG, neural signals) demand cables with 50% higher bandwidth and MIL-STD-461 compliance.



Inflection Point 2: Device Miniaturization

From "Bulky Pipelines" to "Invisible Nerves"

• Dynamic ECG Patches & Endoscopes: Spatial constraints drive cables to sub-3mm diameters.

• Mechanical Challenges: Cables in robot joints must survive 1M+ bending cycles in confined spaces.

• Material Innovation: Thermoplastic elastomers (TPE) replace PVC for 40% weight reduction.



Inflection Point 3: Harsh Environment Survival

From Labs to Battlefields

• Composite OR Challenges: Concurrent operation of imaging systems, electrosurgical units, and monitors creates EMI levels exceeding 100 V/m.

• Sterilization Stress: Autoclave (134°C, 2.1 bar) and EO gas exposure require EPDM/FFKM seals.

• Chemical Resistance: Cables in interventional suites withstand 70% IPA exposure without swelling.

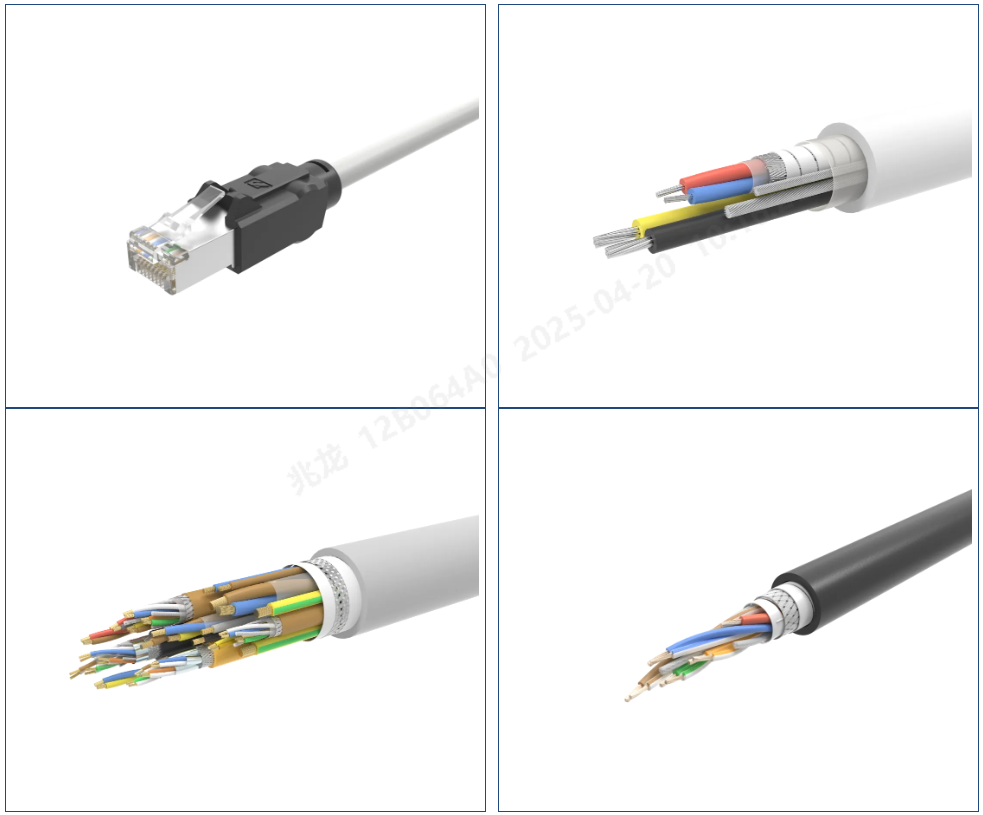

Precision Matching: The New Paradigm for Medical Cables

Customization Beyond "One-Size-Fits-None"

• Diagnostics: Hybrid cables integrating CoaXPress (12.5 Gbps) with fiber optics for 4K/8K imaging.

• Robotic Systems: Braided UTP cables with 85% shield coverage for 10^8 Hz signal integrity.

• Disposable Components: Antimicrobial TPU coatings (ASTM E2149) with <0.1 ppm VOC emissions.

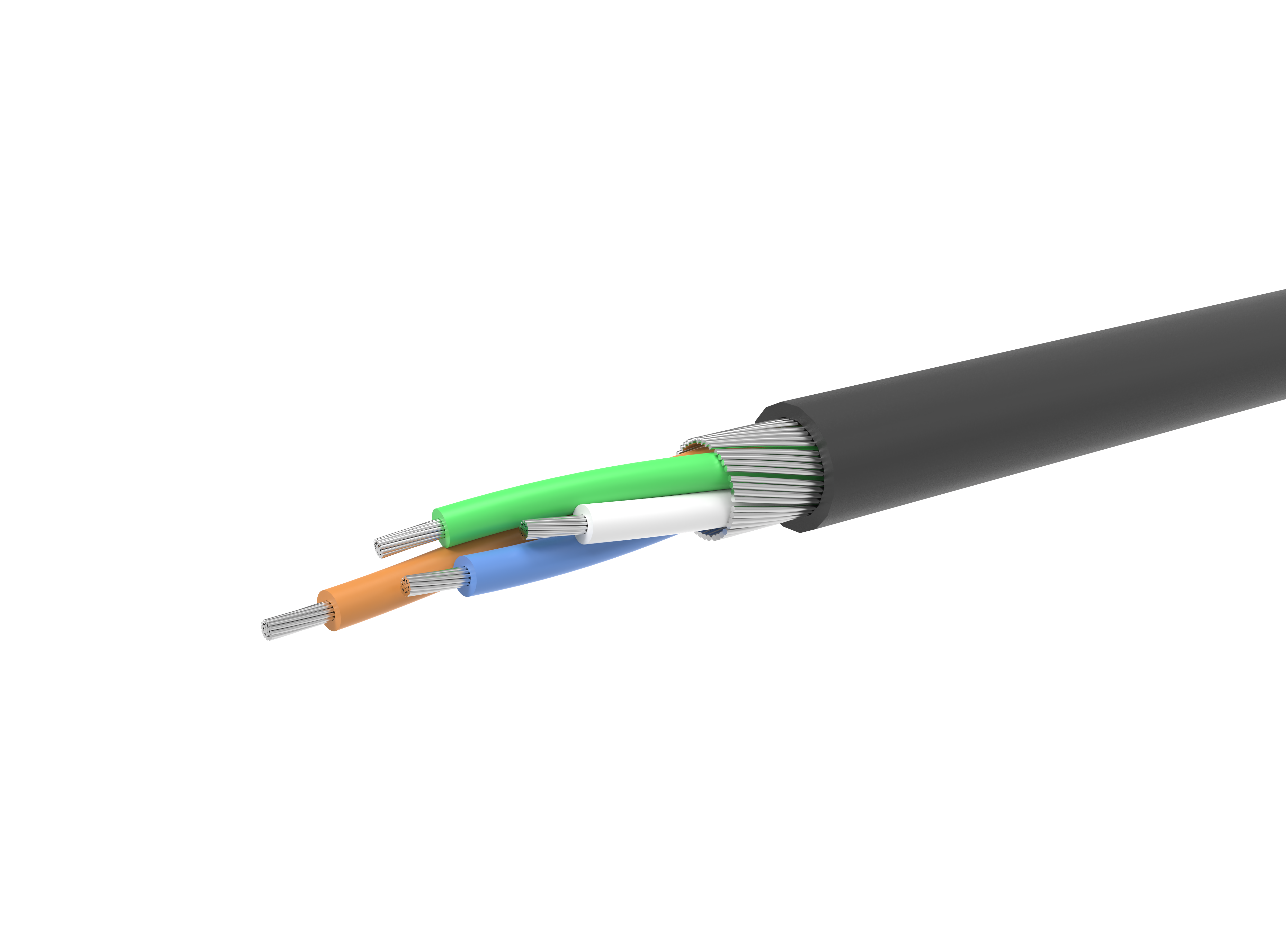

Case Study: CAT5e Surgical Robot Cable

Zhaolong’s Category 5e Surgical Robot Cable is a custom-engineered system integration solution tailored for high-end surgical access devices, featuring:

• ANSI/TIA-568.2-D compliant CAT5e performance (10 Gbps transmission)

• Dual-layer shielding (≥85% coverage) to mitigate EMI in robotic arms

• FEP-insulated conductors with 1M+ bending cycle resilience

Parameter	Specification	Test Result
Diameter	2.2 mm	IEC 60512-99-002 compliant
Bend Life	1M cycles@ 60 cycles/min	Zero discontinuity
Shielding Effectiveness	85% coverage (EN 50289-1-1)	< -60 dB @ 1 GHz
Sterilization	Autoclave (134°C, 2.1 bar) × 100 cycles	No insulation degradation



Why Choose Zhaolong?

1. Clinical-Grade Customization

n Full-Spectrum Coverage: Imaging (CT/DR), robotics, disposables.

n Regulatory Compliance: ISO 13485, FDA 21 CFR Part 820, MDR/IVDR.

n Testing Capabilities: 10M+ fatigue tests, HALT/HASS accelerated lifecycle.

2. Materials Science Leadership

n Dual-Layer Shielding: Aluminum foil + tinned copper (90% EMI attenuation).

n Low-Odor TPU: <0.05 mg/m³ TVOC (ISO 12219-7).



Call to Action

Join us at Booth H41, Hall 5.2, CMEF 2024 (April 8-11) to explore:

n Next-Gen Cable Solutions for AI diagnostics and robotic surgery.

n Custom Design Workshops addressing your specific EMI/sterilization challenges.
