LONGTRONIC® ETHERNET CAT8

As a high-speed data cable, it is applied to the generic cabling system of cloud computing center, large data room, office, residential area, factory and other buildings. Applied in IEEE 802.3: 10Base-T, 100Base-T, 1000BASE-T, 10gbase-t. And can also be applied to an industrial environment.
Availability:
Quantity:
Inquire Add to Basket

LONGTRONIC® ETHERNET CAT8
LONGTRONIC® ETHERNET CAT8

  • CAT8

  • zhaolong

CHARACTERISTIC

Cable flame retardancy meets iec60332-1-2

Wire to aluminum foil shielding and tinned copper braiding

Excellent anti external electromagnetic interference ability

Signal transmission frequency can reach 2000mh

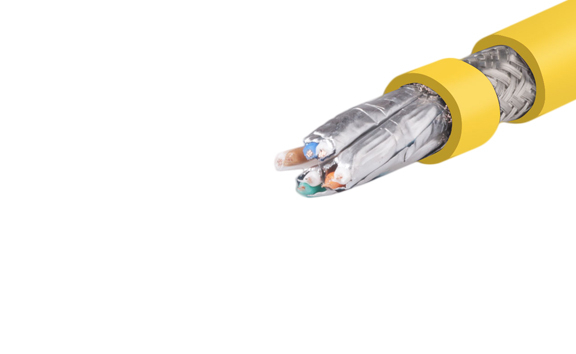

CABLE STRUCTURE

Conductor: solid bare copper conductor

Insulation: foamed PE

Shielding: wire to aluminum foil shielding plus tinned copper braiding

Sheath: PVC / LSZH

Color: yellow


TECHNICAL PARAMETER

Temperature range: - 40 ℃ ~ 80 ℃

Test voltage: 1000V / min (DC)

Characteristic impedance: 100 ± 15 Ω @ 100MHz

Insulation resistance: ≥ 5g Ω. Km

Minimum bending radius

Fixed application: 10d (d = cable diameter)

Reference standard:

IEC61156-9
