LONGTRONIC® ETHERNET CAT5e

As a high-speed data cable, it is applied to the generic cabling system of cloud computing center, large data room, office, residential area, factory and other buildings. Applied in IEEE 802.3: 10Base-T, 100Base-T, 1000base-t. And can also be applied to an industrial environment.
Availability:
Quantity:
Inquire Add to Basket

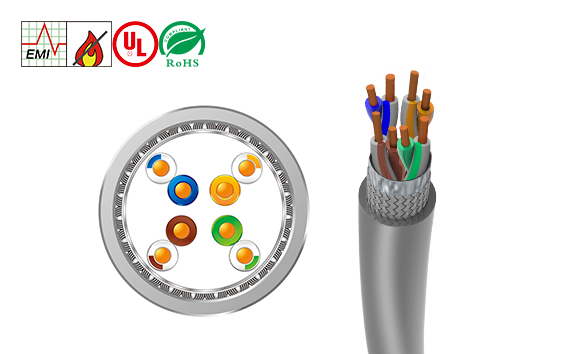

LONGTRONIC® ETHERNET CAT5e
LONGTRONIC® ETHERNET CAT5e

  • CAT5e

  • zhaolong

CHARACTERISTIC

Cable flame retardancy meets iec60332-1-2

Shielded type has excellent anti external electromagnetic interference ability, especially SF / UTP structure

Signal transmission frequency can reach 100MHz

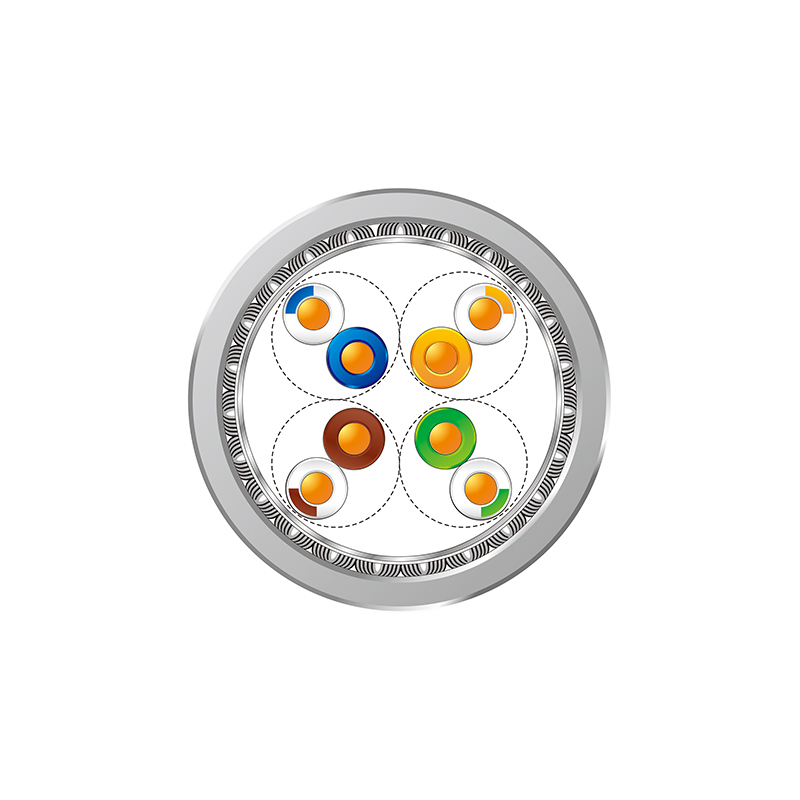

CABLE STRUCTURE

Conductor: solid bare copper conductor

Insulation: PE

Shield: SF / UTP: aluminum foil shield plus tinned copper braid

Sheath: PVC / LSZH / pur

Color: gray, blue


TECHNICAL PARAMETER

Temperature range: - 40 ℃ ~ 80 ℃

Test voltage

1000V/min（DC）

characteristic impedance

100±15Ω@100MHz

insulation resistance

≥5GΩ.km

Minimum bending radius

Fixed application: 8D (d = cable diameter)

Reference standard

IEC61156-5, ANSI/TIA-568-C.2

EN50173&ISO/IEC11801
