QSFP-DD MCB

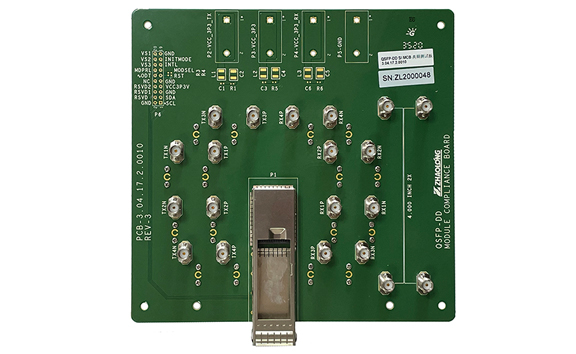

QSFP-DD MODULE COMPLIANCE BOARD
QSFP-DD MSA Hardware Specification Rev 2.3
Compliant to IEEE802.3bj, IEEE802.3bm, IEEE802.3bs, and IEEE802.3cd, test fixture specifications.
Availability:
Quantity:
Inquire Add to Basket

QSFP-DD MCB

  • QSFP-DD

  • zhaolong

SPECIFICATION
Impedance : 100Ω
Requires +5V (+/-10%) unregulated external voltage
Facilitates power sourcing to DUT
Built-In +3.3V linear voltage regulator - 7A current capability Generates local clean voltage sourcing to DUT
Calibration
Calibration Traces (2x)
Enables accurate de-embedding of test fixture trace loss
