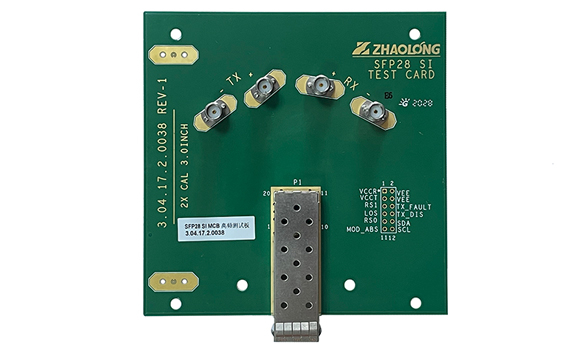

SFP28 MCB

SFP28 MODULE COMPLIANCE BOARD 25G-CAUI MODULE COMPLIANCE BOARD. Compliant to IEEE802.3by, IEEE802.3cd,IEEE 802.3bm, IEEE802.3bs, test fixture specifications.
Availability:
Quantity:
Inquire Add to Basket

SFP28 MCB

  • SFP28

  • zhaolong

SPECIFICATION
Impedance : 100Ω
Requires +5V (+/-10%) unregulated external voltage Facilitates power sourcing to DUT
Built-In +3.3V linear voltage regulator Generates local clean voltage sourcing to DUT
Calibration Traces (2x)
Enables accurate de-embedding of test fixture trace loss
