MINI SAS HD 4X SI Test Fixture

SFF-8614 Module Specification
Compliant to SAS4.0 ,PCIe4.0, test fixture specifications.
Availability:
Quantity:
Inquire Add to Basket

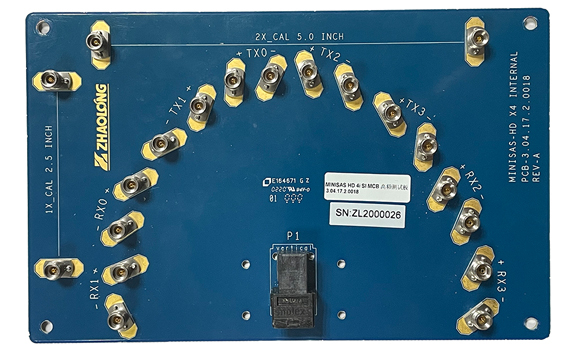

MINI SAS HD 4X SI Test Fixture

  • MINI SAS HD

  • zhaolong

SPECIFICATION

Impedance : 100Ω

Calibration Traces (2x)
Enables accurate de-embedding of test fixture trace loss
