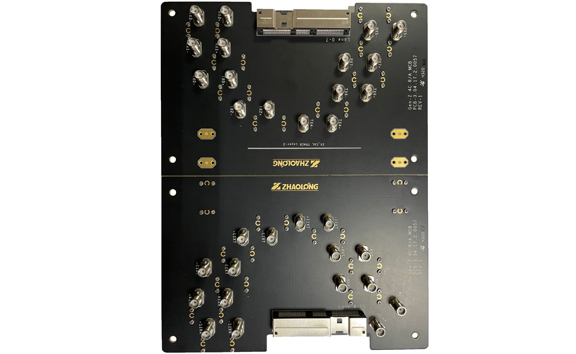

Gen-Z 4C Receptacle SI Test Fixture

SFF-TA-1002 Gen-ZCompliance Test Board Specification
Compliant to SAS5.0 ,PCIe5.0, test fixture specifications.
Availability:
Quantity:
Inquire Add to Basket

Gen-Z 4C Receptacle SI Test Fixture

  • Gen-Z

  • zhaolong

SPECIFICATION
Impedance : 92Ω
Calibration Traces (2x)
Enables accurate de-embedding of test fixture trace loss
