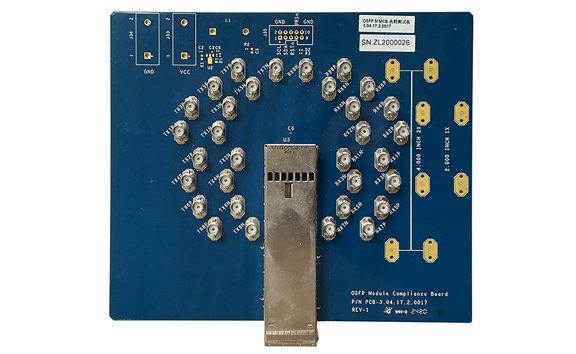

OSFP MCB

OSFP MODULE COMPLIANCE BOARD
OSFP MSA Specification
Compliant to IEEE802.3bj, IEEE802.3bm, IEEE802.3bs, and IEEE802.3cd, test fixture specifications.
Availability:
Quantity:
Inquire Add to Basket

OSFP MCB

  • OSFP

  • zhaolong

SPECIFICATION

Impedance：100Ω

Requires +5V (+/-10%) unregulated external voltage
Facilitates power sourcing to DUT
Built-In +3.3V linear voltage regulator - 7A current capability Generates local clean voltage sourcing to DUT
