KNX/EIB
zhaolong
CHARACTERISTIC
The flame retardancy meets the requirements of iec60332-1-2
It has a good shielding effect
Easy installation, economical and reliable

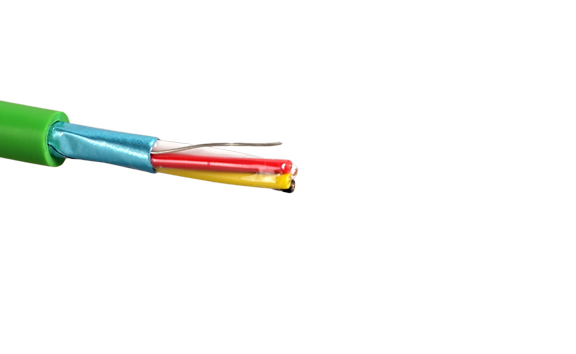

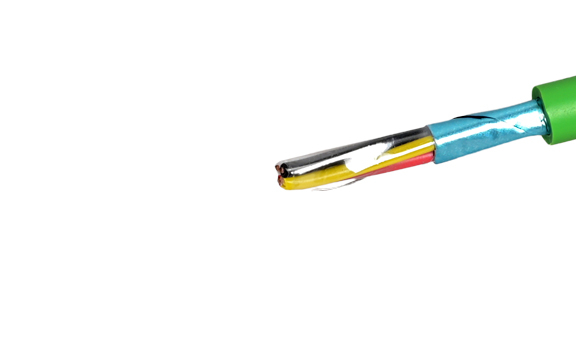

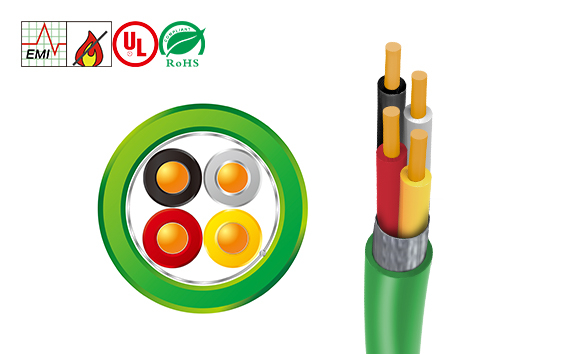

CABLE STRUCTURE
Conductor: bare copper copper conductor
Insulation: PVC
Color: white, black, yellow, red
Shielding: wrapped with aluminum foil
Ground wire: tinned copper conductor
Sheath: PVC / LSZH
Color: Green
TECHNICAL PARAMETER
temperature range
Fixed application: - 20 ℃ ~ 70 ℃
During installation: - 5 ℃ ~ 60 ℃
Test voltage
4000V/min(AC)
Rated voltage
250V
insulation resistance
≥100MOhm*km
Minimum bending radius
Fixed application: 10d (d = cable diameter)
CHARACTERISTIC
The flame retardancy meets the requirements of iec60332-1-2
It has a good shielding effect
Easy installation, economical and reliable
CABLE STRUCTURE
Conductor: bare copper copper conductor
Insulation: PVC
Color: white, black, yellow, red
Shielding: wrapped with aluminum foil
Ground wire: tinned copper conductor
Sheath: PVC / LSZH
Color: Green
TECHNICAL PARAMETER
temperature range
Fixed application: - 20 ℃ ~ 70 ℃
During installation: - 5 ℃ ~ 60 ℃
Test voltage
4000V/min(AC)
Rated voltage
250V
insulation resistance
≥100MOhm*km
Minimum bending radius
Fixed application: 10d (d = cable diameter)
