LONGTRONIC® BUS CANBUS TP

It can be used for a variety of bus systems, and is suitable for setting up networks in automation technology, integrated control and controller fields, such as textile industry, construction machinery industry and medical industry. Suitable for fixed applications or occasional mobile applications.
Availability:
Quantity:
Inquire Add to Basket

LONGTRONIC® BUS CANBUS TP
LONGTRONIC® BUS CANBUS TP

  • CANBUS TP

  • zhaolong

CHARACTERISTIC

The flame retardancy meets the requirements of iec60332-1-2

It has good anti external electromagnetic interference ability

Stable transmission performance

Suitable for fixed installation or occasional movement

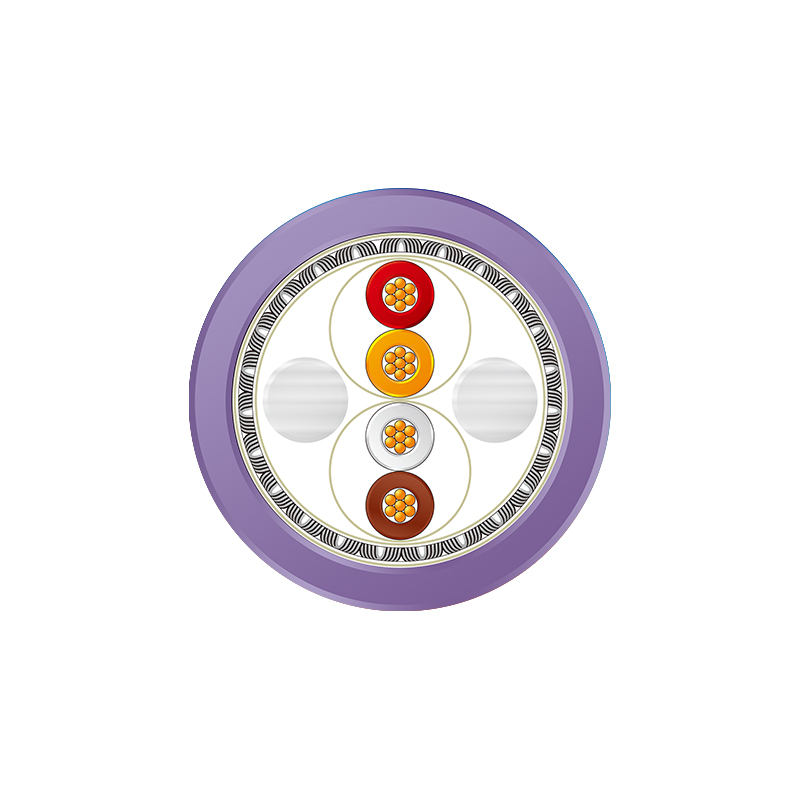

CABLE STRUCTURE

Conductor: stranded bare copper conductor

Insulation: foamed PE

Color: according to DIN 47100

Shield: tinned copper braid

Sheath: PVC

Color: Purple (approximate ral 4001)


TECHNICAL PARAMETER

temperature range

Fixed application: - 40 ℃ ~ 80 ℃

Occasional movement: - 5 ℃ ~ 60 ℃

Test voltage

1500V/min（AC）

characteristic impedance

120±15Ω@1MHz

Rated voltage

300V

Minimum bending radius

Fixed application: 10d (d = cable diameter)

Occasional movement: 15d (d = cable diameter)
