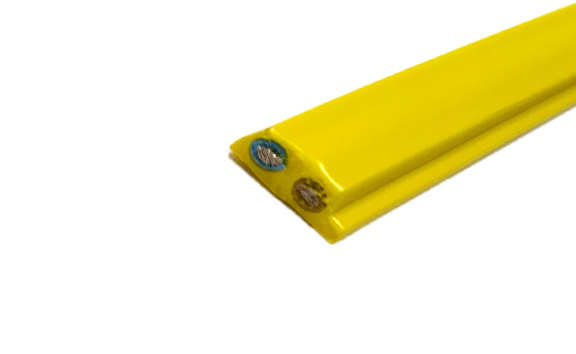

LONGTRONIC® BUS AS-Interface

It is suitable for as interface bus system, used for cross connection of sensors and actuators, and suitable for automotive, chemical and other industries.
Availability:
Quantity:
Inquire Add to Basket

LONGTRONIC® BUS AS-Interface
LONGTRONIC® BUS AS-Interface
LONGTRONIC® BUS AS-Interface

  • AS-Interface

  • zhaolong

CHARACTERISTIC

The flame retardancy meets the requirements of iec60332-1-2

Pur sheath is especially oil resistant

Pur sheath: abrasion and hydrolysis resistant

Pur sheathed cable (halogen free)

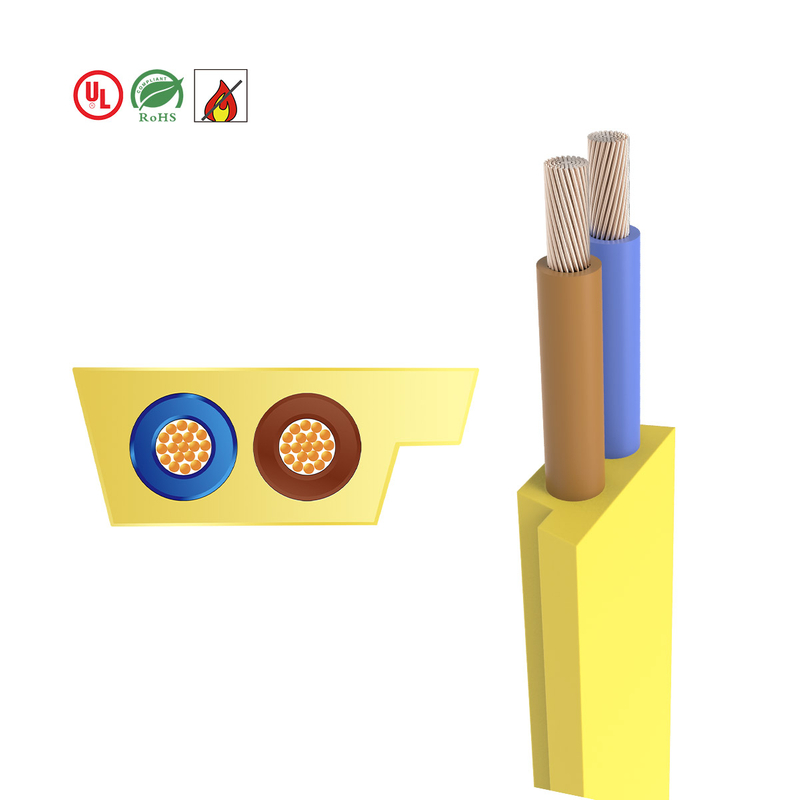

CABLE STRUCTURE

Conductor: tinned copper stranded conductor

Insulation: TPE

Color: blue, brown

Sheath: PVC / pur

Color: Yellow / Black


TECHNICAL PARAMETER

temperature range

Fixed application: - 40 ℃ ~ 80 ℃

During installation: - 20 ℃ ~ 70 ℃

Test voltage

2000V/min(AC)

Rated voltage

300V

insulation resistance

≥1MOhm*km

Minimum bending radius

Fixed application: 10d (d = cable diameter)
