LONGFLEX® CHAIN 420 CY

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -40°C~70°C

    Mobile Application: -5°C~70°C

—Test Voltage

    4000V/5min(AC)

—Insulation Resistance(20°C)

    ≥20MΩ.km

 —Rated Voltage

    300/500V

—Minimum Bending Radius

    Fixed Application: 4D(D=cable diameter)

    Mobile Application: 10D(D=cable diameter)

—Application of drag chain

    1~3milliontimes

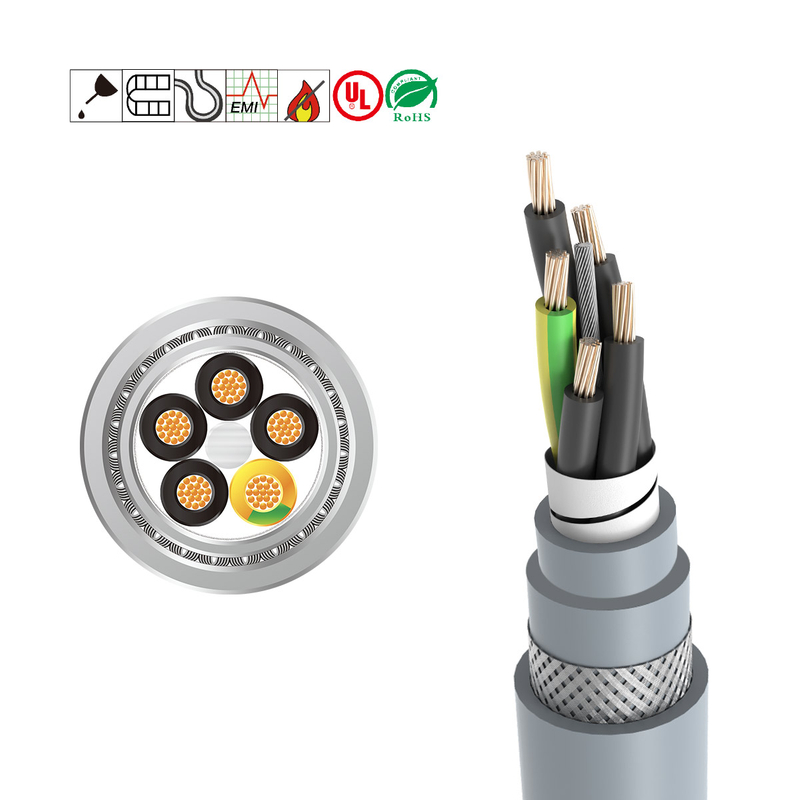

CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper, according to IEC 60228/VDE 0295 class 5

Insulation:

PVC

Insulation Color:

According to DIN VDE 0293, black cores with white numbering, green-yellow conductor

Jacket:

PVC

Color:

Grey(similar to RAL 7001)

FEATURES

Flame resistance according to IEC60332-1

Good property of flexibility

Small bending radius

Good oil resistance
