LONGFLEX® CHAIN FD 837 P

TECHNICAL PARAMETERS

—Temperature Range

    Fixed Application: -50°C~90°C

    Mobile Application:- 40°C~80°C

—Test Voltage

    3000V/5min(AC)

—Insulation Resistance(20°C)

     ≥20MΩ.km

—Rated Voltage

    300/500V

—Minimum Bending Radius

    Fixed Application: 4D(D=cable diameter)

    Mobile Application: 7.5D(D=cable diameter)

—Application of drag chain

    ≥20 million times

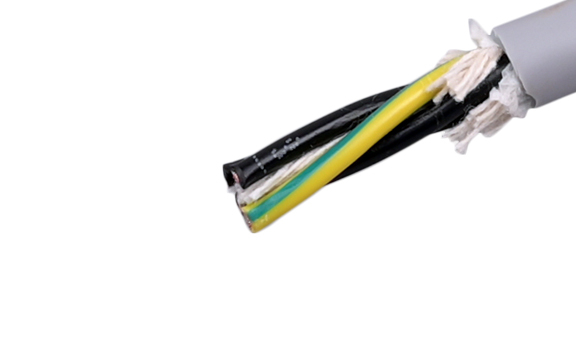

CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper, according to IEC 60228/VDE 0295 class 6

Insulation:

TPE Insulation

Color:

According to DIN VDE 0293, black cores with white numbering, green-yellow conductor

Jacket:

PUR

Color:

Grey(similar to RAL 7001)

FEATURES

Halogen free, flame resistance according to IEC60332-1

Good property of flexibility

Small bending radius

Good oil resistance, abrasion resistance and anti-hydrolysis
