High-temperature low-loss medical coaxial cable

TECHNICAL DATA

—Temperature Ranges

 -15℃ ~90℃

—Characteristic Impedance

 50±3Ω

—Dielectric Strength

 AC1000V

 1min

—Capacitance（1KHz）

 Nom.95nF/m

—Conductor Resistance（Double bridge）

 Max.300Ω/km

—Insulation Resistance

 Min1524MΩ·km

—Rated Voltage

 30V

—Attenuation（Max）

 2db/m（2.5GHz）

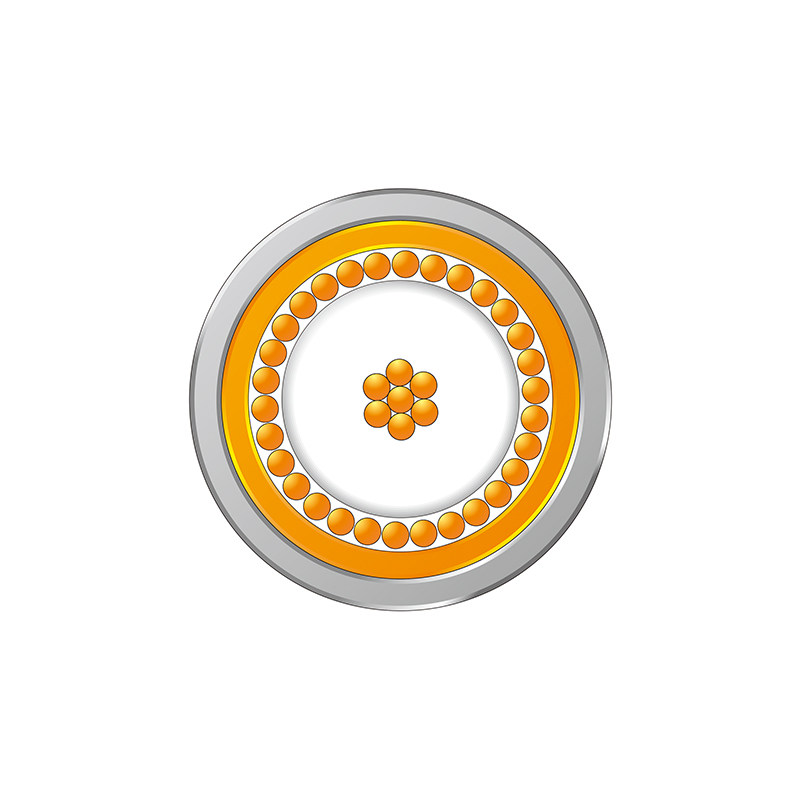

CABLE CONSTRUCTION

Conductor :

Stranded alloy wire

Insulation :

Fluoroplastic

Shield :

Tinned copper wire braid and cu metalized polyester tape screen

Jacket :

Fluoroplastic

PROPERTIES

Solf and flexible, small frictional resistance, smooth and round appearance

Aergonomics, small size, light weight, high flexibility and intuitive security

Durcbility, flexbility and reliability, resistant to abrasion, sharp

strech, scrach, torsion, etc.

Sterlization requirements:suitable for TtO(ethyene oxide),

autoclaving, cold treatment, CIDEX（glutaraidehyde）soaked, IPA

(isopropyl alcohol) to clean, etc.
