Very fine CAT5E

Ultra-fine CAT5E, using special materials and processes, has a very small outer diameter and excellent flexibility, especially suitable for surgical robots.
Availability:
Quantity:
Very fine CAT5E
  • Very fine CAT5E

  • zhaolong

TECHNICAL PARAMETER

—Temperature range: -60~200℃

—Characteristic impedance: 100±15Ω

—Insulation resistance: ≥100M.km

—Test voltage: 500V/min(AC)

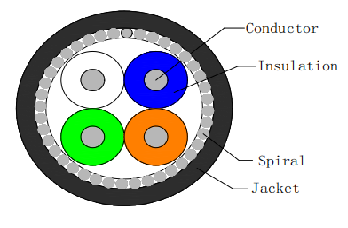

CABLE STRUCTURE

Conductor: Stranded silver-plated copper conductor

Insulation: FEP

Shield: high coverage tinned copper winding shield

Sheath: FEP

Colour: Black


FEATURES

High flame retardancy, flame retardancy meets VW-1 requirements

Has good resistance to external electromagnetic interference

Star quad design, superior transmission performance

Ultra-fine design, small bending radius

Excellent flexibility,

FEP sheath has good temperature resistance and chemical environment resistance
