Proble cable for ultrasound equipment

TECHNICAL DATA

—Temperature Ranges

 -15℃~80℃

—Characteristic Impedance

 50±5Ω

—Center conductor Resistance

 ≥5000MΩ/km

—Dielectric Strength

 AC500V

 1min

—Capacitance

 1KHz :

110±20nF/m

—Insulation Resistance

 Min1000MΩ.km

—Attenuation

 Max :

0.61db/m

—Rated Voltage

 30V

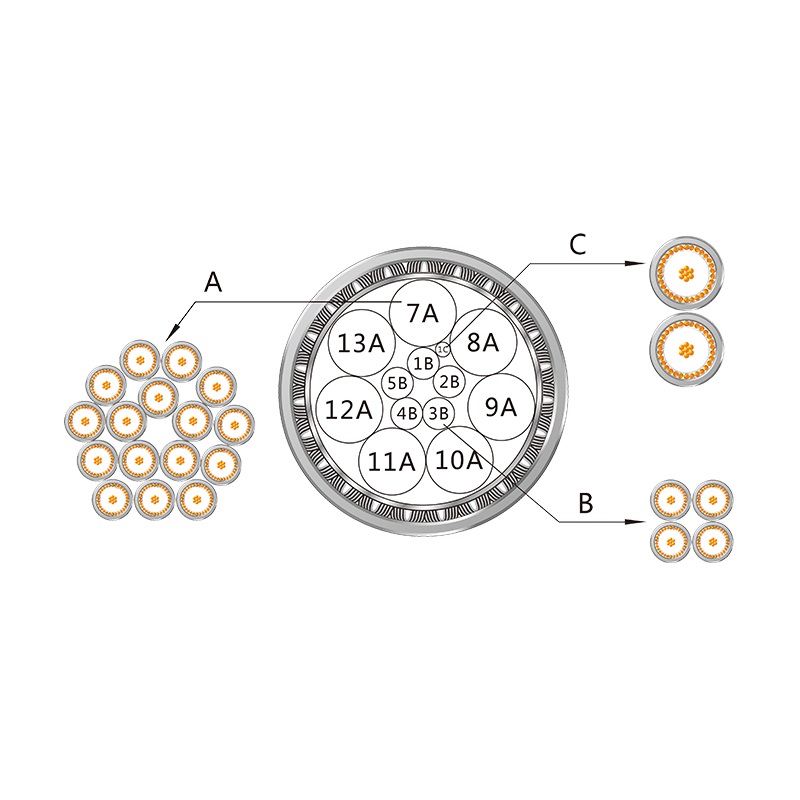

CABLE CONSTRUCTION

Conductor :

Stranded alloy wire

Insulation :

Fluoroplastic

Tape :

PET

Shield1 :

Alloy wire Jacket1 : PET

Shied2 :

Alloy wire Jacket2 : Please see attahced list

PROPERTIES

This micro-coaxial cable, with excellent performance of resistent

to bending and twisting, anti-EMI and perfect high speed signal

transmission

Flame resisrance
