RVVY

TECHNICAL PARAMETERS

- temperature range

60227 IEC 75 (RVVY) -15℃ ~70℃

- Test voltage

2000/5min (AC)

— Insulation resistance (70℃)

(See table below)

— Rated voltage

300/500V

— Minimum bending radius

Fixed application:

6D (D= cable diameter)

Move occasionally:

15D (D= cable diameter)

- Guideline

GB/T5023.7

IEC60227-7

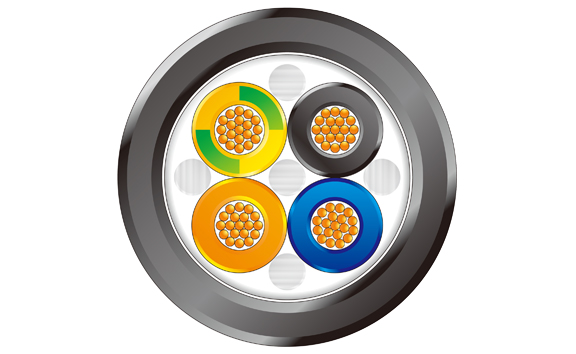

CABLE STRUCTURE

Conductor: fine bare copper stranded conductor, in line with IEC 60228/VDE 0295 category 5 conductor standard

Insulation: PVC

Insulation color: in line with GB/T5023

Sheath: PVC

Colour: Black

FEATURES

Passed China National Compulsory Product Certification

Flame retardant meets the requirements of IEC60332-1

Has good flexibility

Has good oil resistance

High quality and durable
