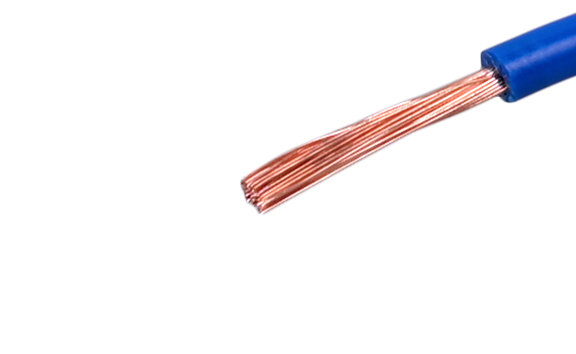

H05V-K H07V-K

This product is suitable for electrical equipment control connections and internal connection lines of mechanical equipment, as well as power distribution cabinets and electronic wire transmission.
Availability:
Quantity:
Inquire Add to Basket

H05V-K H07V-K
H05V-K H07V-K

  • H05V-K, H07V-K

  • zhaolong

TECHNICAL PARAMETERS

- temperature range

-15℃ ~70℃

- Test voltage

H05V-K 2000/5min (AC)

H07V-K 2500/5min (AC)

— Insulation resistance (70℃)

(See table below)

— Rated voltage

H05V-K 300/500V

H07V-K 450/750V

- Guideline

EN 50525-2-31


CABLE STRUCTURE

Conductor: fine bare copper stranded conductor, in line with IEC 60228/VDE 0295 category 5 conductor standard

Insulation: PVC

Insulation color: black, other colors are optional


FEATURES

Flame retardant meets the requirements of IEC60332-1

Has good flexibility

High quality and durable
