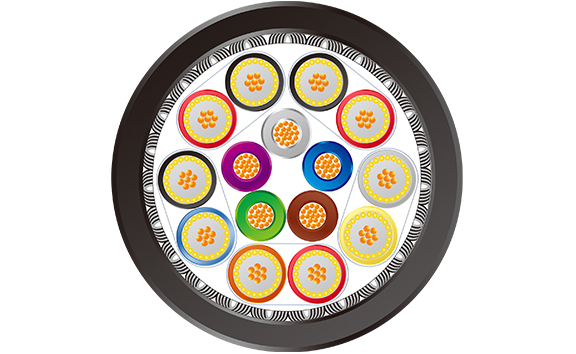

Mini HD Digital Multimedia Transmission Line
zhaolong
CONVENTIONAL PRODUCT PERFORMANCE PARAMETERS:
Rated temperature: 80℃
Reference Standard: HDMI Association Standard, UL758
Stranded stranded tinned copper alloy conductor
RoHS-compliant PFA, PVC, TPE plastic
ELECTRICAL PARAMETERS:
DC conductor resistance (20℃): 40AWG<5000Ω/km, 36AWG<1490Ω/km
Insulation resistance PFA: AC-500V1524MΩ/kmMin.at20℃
Impedance of very fine coaxial line: 50±5Ω
Delay: 4.2-5.2ns/m
Internal delay difference: -25~+25ps/m
CONVENTIONAL PRODUCT PERFORMANCE PARAMETERS:
Rated temperature: 80℃
Reference Standard: HDMI Association Standard, UL758
Stranded stranded tinned copper alloy conductor
RoHS-compliant PFA, PVC, TPE plastic
ELECTRICAL PARAMETERS:
DC conductor resistance (20℃): 40AWG<5000Ω/km, 36AWG<1490Ω/km
Insulation resistance PFA: AC-500V1524MΩ/kmMin.at20℃
Impedance of very fine coaxial line: 50±5Ω
Delay: 4.2-5.2ns/m
Internal delay difference: -25~+25ps/m
