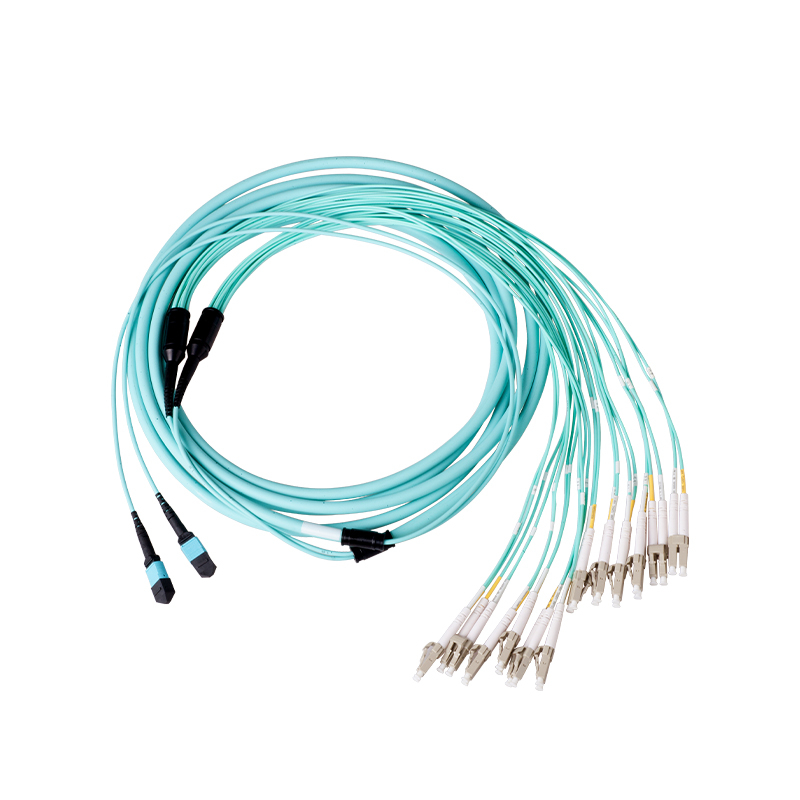

MPO-LC fan-out jumper

Designed for 10G ~ 100G transmission
Optical fiber performance meets 10 Gigabit multi-mode OM3, OM4; zero water peak single-mode OS2 optical cable jacket flame retardant grade meets low smoke and halogen-free or UL (OFNR, OFNP) and other high density
miniaturization
Imported high-precision connector assembly, resistant to insertion and removal, low loss, good interchangeability, high-quality optical fiber ribbon, excellent optical performance
Components are fully ground and 100% performance tested to ensure high-quality optical performance
A single bar can support 12~144 core capacity, save cabinet space length, jacket flame retardant level can be customized, plug and play structure, greatly reduce network management and maintenance costs, use high-quality environmentally friendly materials, meet RoHS requirements
Availability:
Quantity:
Inquire Add to Basket

MPO-LC fan-out jumper
MPO-LC fan-out jumper

  • MPO-LC

  • zhaolong

OPTICAL PERFORMANCE

Typical insertion loss:

≤ 0.50 dB(MPO Single mode/multimode)

≤ 0.30 dB(LC Single mode UPC)

≤ 0.20 dB(LC Single mode APC)

≤ 0.20 dB(LC multimode PC)

Maximum insertion loss:

≤ 0.35 dB(MPO Single mode/multimode)

≤0.15 dB(LC Single mode UPC)

≤ 0.20 dB(LC Single mode APC)

≤ 0.15 dB(LC multimode PC)

Typical back reflection (single mode):

>60 dB(MPO Single mode)

>20 dB(MPO multimode)

>50 dB(LC Single mode UPC)

>60 dB(LC Single modeAPC)

>30 dB(LC multimode PC)

Minimum back reflection (single mode):

>60 dB(MPO Single mode)

>20 dB(MPO multimode)

>55 dB(LC Single mode UPC)

>65 dB(LC Single mode APC)

>40 dB(LC multimode PC)



PHYSICAL PARAMETERS

Operating temperature:

-20 °C~ 60 °C(PVC)

-30 °C~ 60 °C(LSZH)

Storage temperature:

-40 °C~ 68 °C

Relative humidity:

10% ~ 90%
