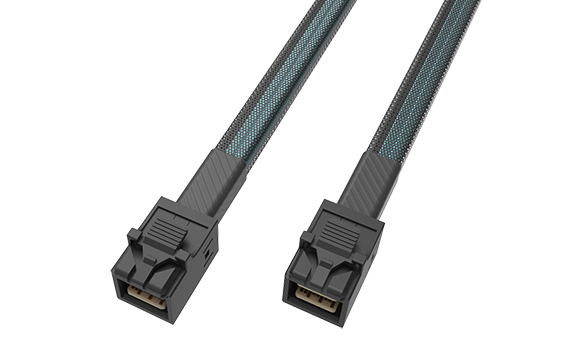

Int.Mini SAS HD 4i STR

APPLCATION / MARKET
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios

FEATURES AND BENEFITS
1. Compliance with SFF-8613/ 8643/8673 standard
2. Small size design: pitch 0.8mm
3. 4i(36pos)and 8i(72pos) connector type, and support straight, right angle and side exit
4. Supports 100 & 85 ohm impedance applications
5. 30-34AWG are available for both discrete and ribbon cable

MECHANICAL PERFORMANCE
1. Mating force:  150N maximum
2. Unmating force: 50N maximum
3. Rated durability cycles: 250 cycles minimum

ELECTRICAL PERFORMANCE
1. Voltage: 30VAC per contact
2. Current: 1.0A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins

SIGNAL INTEGRITY
1. PCIe 4.0 16.0 GT/S
2. SAS 4.0 24 Gbps

PRODUCT ENVIRONMENTAL COMPLIANCE
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
