800G OSFP SR8 Transceiver

• Hot-pluggable OSFP 800G SR8 multimode transceiver
• Compliant with OSFP MSA Type2 flat top with dual MPO-12 connector
• Compliant with CMIS Rev 5.0 and above revision
• Maximum power consumption 17W

Availability:

Quantity:



Inquire Add to Basket

Model:
800G OSFP SR8 Transceiver
Brand:
zhaolong

Product Description

Application

• Data center & Networking Equipment

• Servers/Storage Devices

• High Performance Computing (HPC)

• Switches/Routers

• Telecom Central Offices (CO)

• Test and Measurement Equipment

Features

• Hot-pluggable OSFP 800G SR8 multimode transceiver

• Compliant with OSFP MSA Type2 flat top with dual MPO-12 connector

• Compliant with CMIS Rev 5.0 and above revision

• Maximum power consumption 17W

• Dual MPO-12 APC receptacles

• Up to 30m reach on OM3 and 50m on OM4

• Case operating temperature 0℃ to 70℃

Product Specification

Absolute Maximum Ratings (TC=25℃, unless otherwise noted)

Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of the data sheet. Exposure to absolute maximum ratings will cause permanent damage and/or adversely affect device reliability.

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Storage Temperature	TS	-40	-	+85	℃
Maximum Supply Voltage	Vcc	-0.5	-	3.6	V
Operating Relative Humidity	RH	5	-	95	%	No condensation
Control Input Voltage	V_I	-0.3	-	V_CC+0.5	V

General Specifications (TC=25℃, unless otherwise noted)

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Operating Case Temperature	TOPR	0	-	70	℃
Power Supply Voltage	VCC	3.135	3.3	3.465	V
Instantaneous peak current at hotplug	ICC_IP	-	-	6800	mA
Sustained peak current at hot plug	ICC_SP	-	-	5670	mA
Maximum Power Dissipation	P_D	-	-	17	W
Maximum Power Dissipation, LowPower Mode	PDLP	-	-	1.5	W
Signaling Rate per Lane	SRL	-	53.125	-	GBd	PAM4
Two Wire Serial Interface ClockRate	-	-100	-	1000	kHz
Power Supply Noise Tolerance (10Hz - 10MHz)	-	-	-	66	mV
Rx Differential Data Output Load	-	-	100	-	Ohm
Operating Distance (OM3)	-	2	-	30	m
Operating Distance (OM4)	-	2	-	50	m

Transmitter Characteristics (TC=25℃, unless otherwise noted)

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Operating Case Temperature	TOPR	0	-	70	℃
Power Supply Voltage	VCC	3.135	3.3	3.465	V
Instantaneous peak current at hotplug	ICC_IP	-	-	6800	mA
Sustained peak current at hot plug	ICC_SP	-	-	5670	mA
Maximum Power Dissipation	P_D	-	-	17	W
Maximum Power Dissipation, Low Power Mode	PDLP	-	-	1.5	W
Signaling Rate per Lane	SRL	-	53.125	-	GBd	PAM4
Two Wire Serial Interface ClockRate	-	-100	-	1000	kHz
Power Supply Noise Tolerance(10Hz - 10MHz)	-	-	-	66	mV
Rx Differential Data Output Load	-	-	100	-	Ohm
Operating Distance (OM3)	-	2	-	30	m
Operating Distance (OM4)	-	2	-	50	m

Notes

Average launch power, each lane (min) is informative and not the principal indicator of signal strength.

Even if max (TECQ, TDECQ) < 1.8dB, OMAouter (min) must exceed this value.

Transmitter reflectance is defined looking into the transmitter.

Receiver Characteristics (TC=25℃, unless otherwise noted)

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Wavelength	λ_C	844	850	863	nm
RMS spectral width	∆λrms			0.6	nm
Average Launch Power, each lane	AOP_L	-1.0	-	3.0	dBm	1

Outer Optical Modulation Amplitude (OMA_outer), each lane	TOMA	-2.1		3.5	dBm	2
Transmitter and Dispersion Eye Closure for PAM4 (TDECQ), each lane	TDECQ	-	-	4.4	dB
Average Launch Power of OFF Transmitter, each lane	TOFF	-	-	-30	dBm
Extinction Ratio, each lane	ER	2.5	3.5	-	dB
RIN₁₄OMA	RIN	-	-	-148	dB/Hz
Optical Return Loss Tolerance	ORL		-	14	dB
Transmitter Reflectance	T_R	-	-	-26	dB	3

Notes

1. Receiver sensitivity (OMAouter), each lane (max) is informative and is defined for a transmitter with TDECQ<=1.8 dB

2. Measured with conformance test signal at TP3 for the BER = 2.4x10-4

PIN Descriptions

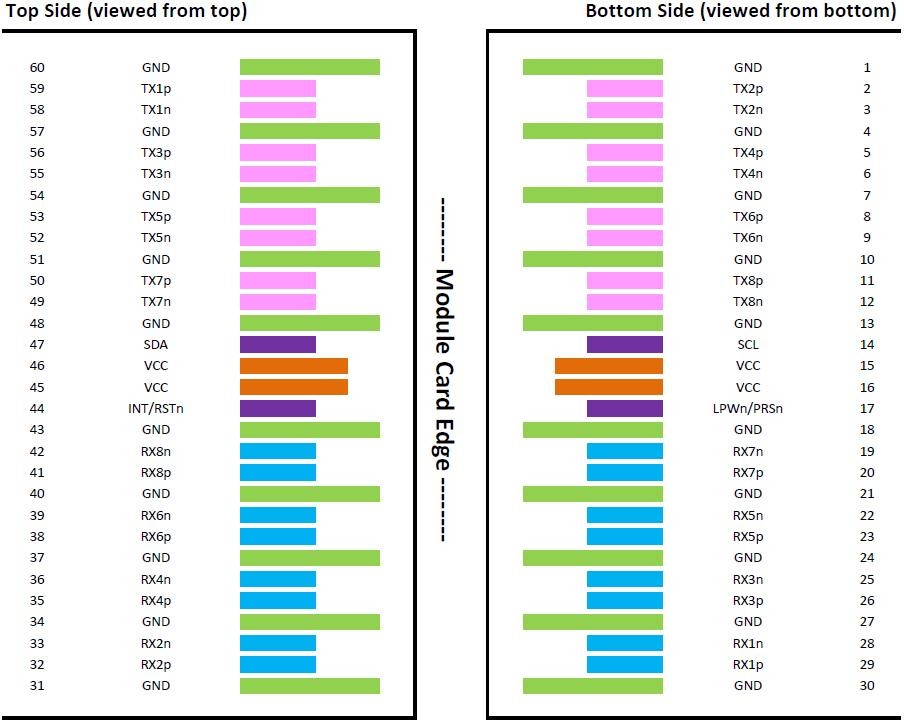

Figure 1 – OSFP module Pinout

PIN	Logic	Symbol	Name/Description
1		GND	Ground
2	CML-I	TX2p	Transmitter Data Non-Inverted
3	CML-I	TX2n	Transmitter Data Inverted
4		GND	Ground
5	CML-I	TX4p	Transmitter Data Non-Inverted
6	CML-I	TX4n	Transmitter Data Inverted
7		GND	Ground
8	CML-I	TX6p	Transmitter Data Non-Inverted
9	CML-I	TX6n	Transmitter Data Inverted
10		GND	Ground
11	CML-I	TX8p	Transmitter Data Non-Inverted
12	CML-I	TX8n	Transmitter Data Inverted
13		GND	Ground
14	LVCMOS-I/O	SCL	2-wire Serial interface clock

15		VCC	+3.3V Power
16		VCC	+3.3V Power
17	Multi-Level	LPWn/PRSn	Low-Power Mode / Module Present
18		GND	Ground
19	CML-O	RX7n	Receiver Data Inverted
20	CML-O	RX7p	Receiver Data Non-Inverted
21		GND	Ground
22	CML-O	RX5n	Receiver Data Inverted
23	CML-O	RX5p	Receiver Data Non-Inverted
24		GND	Ground
25	CML-O	RX3n	Receiver Data Inverted
26	CML-O	RX3p	Receiver Data Non-Inverted
27		GND	Ground
28	CML-O	RX1n	Receiver Data Inverted
29	CML-O	RX1p	Receiver Data Non-Inverted
30		GND	Ground
31		GND	Ground
32	CML-O	RX2p	Receiver Data Non-Inverted
33	CML-O	RX2n	Receiver Data Inverted
34		GND	Ground
35	CML-O	RX4p	Receiver Data Non-Inverted
36	CML-O	RX4n	Receiver Data Inverted
37		GND	Ground
38	CML-O	RX6p	Receiver Data Non-Inverted
39	CML-O	RX6n	Receiver Data Inverted
40		GND	Ground
41	CML-O	RX8p	Receiver Data Non-Inverted
42	CML-O	RX8n	Receiver Data Inverted
43		GND	Ground
44	Multi-Level	INT/RSTn	Module Interrupt / Module Reset
45		VCC	+3.3V Power
46		VCC	+3.3V Power
47	LVCMOS-I/O	SDA	2-wire Serial interface data
48		GND	Ground
49	CML-I	TX7n	Transmitter Data Inverted
50	CML-I	TX7p	Transmitter Data Non-Inverted
51		GND	Ground
52	CML-I	TX5n	Transmitter Data Inverted
53	CML-I	TX5p	Transmitter Data Non-Inverted
54		GND	Ground
55	CML-I	TX3n	Transmitter Data Inverted

56	CML-I	TX3p	Transmitter Data Non-Inverted
57		GND	Ground
58	CML-I	TX1n	Transmitter Data Inverted
59	CML-I	TX1p	Transmitter Data Non-Inverted
60		GND	Ground

Mechanical Specifications

Figure 2 – Mechanical Dimensions

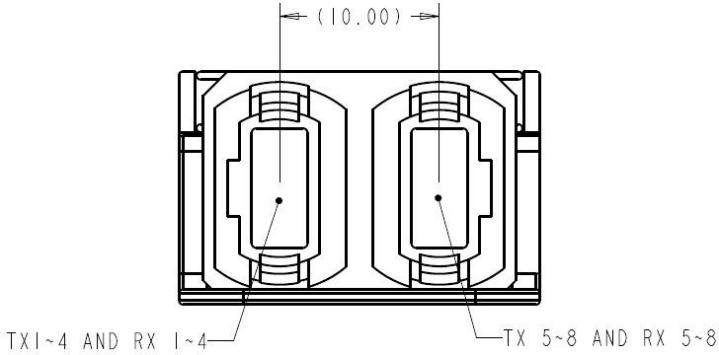

Figure 3 – Active fiber ports in MPO12 connector on module side

Product Information

Data Rate	Factor		Optical	Wavelength	Reach
800G	OSFP	SR8	MPO	850nm	70m

ESD Safety Cautions

This transceiver is specified as ESD threshold 1KV for high speed data pins based on Human Body Model per ANSI/ESDA/JEDECJS-001. The units are subjected to 15kV air discharges during operation and 8kV direct contact discharges to the case. However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.

Important Notice

The performance figures, data, and any illustrative material presented in this datasheet are typical and must be explicitly confirmed in writing by ZHAOLONG before they are deemed applicable to any specific order or contract.

By ZHAOLONG's policy of continuous improvement, specifications may change without prior notice. The publication of information in this datasheet does not imply exemption from patent or other protective rights held by ZHAOLONG or other parties. Additional details can be obtained from any ZHAOLONG sales representative.

Revision Record
