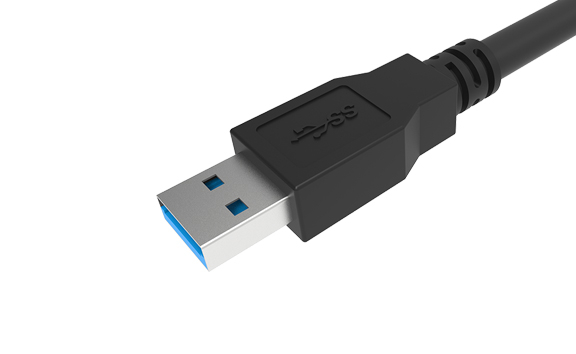

USB 3.0

PC and camera connected with USB3.0 interface, mature interface scheme, high speed, low latency, suitable for short-distance data transmission.
Availability:
Quantity:
Inquire Add to Basket

USB 3.0
USB 3.0
USB 3.0

  • USB

  • zhaolong

CABLE STRUCTURE/PERFORMANCE



 Fixed type High flexibility
Conductor specification 28AWG 28AWG
Shielding structure Aluminum foil and woven mesh shield Aluminum foil and woven mesh shield
Sheath material PVC
 PVC
Sheath color black black
Nominal outer diameter of cable 6.2mm
 7mm
Characteristic impedance 90士15Ω
 90士15Ω
temperature range
-40℃~80°c
 -5℃~70℃
-40℃~80℃(fixed)
 -5℃~70℃(move)


FEATURES

Ultra-high transmission rate, support 5Gbps

With a variety of connector types, Type A, Type B, Mirco B, wide applicability, upgraded power cord specifications, support for high-power cameras

The transmission is stable, the connection is reliable, and the camera end screw is locked to effectively prevent displacement and ensure stable data transmission

Excellent shielding design to ensure strong resistance to external electromagnetic interference

Highly flexible type, especially suitable for mobile applications, can meet 5 million drag chain applications, suitable for a wide range of industrial occasions

The cable has good oil resistance, cold resistance, flame resistance, and is RoHS 2.0 compliant

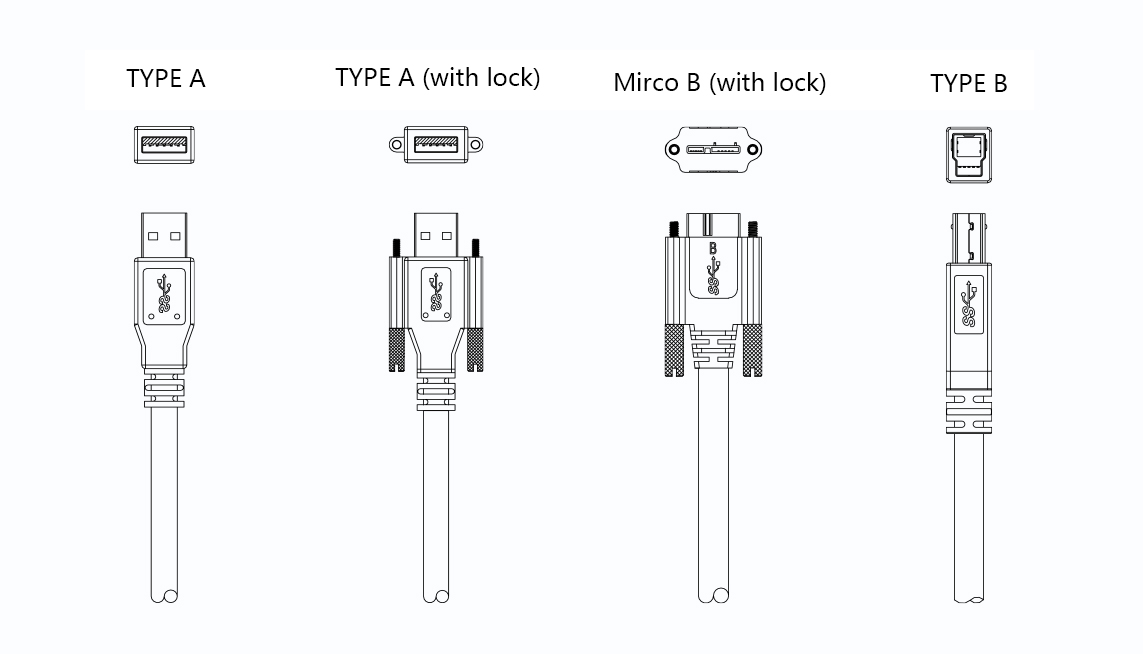

CAD DRAWING

USB3英
