LF-DATA Li2YCYv-TP
zhaolong
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application : -40℃~80℃
Occasional Movement : -5℃~70℃
—Test Voltage
core/core 2000V/min(AC)
core/shield 1000V/min(AC)
—Capacitance
core/core ≤60nF/km
—Insulation Resistance( 20℃)
≥5GΩ.km
—Rated Voltage
250V
—Minimum Bending Radius
Fixed Application: 6D (D=cable diameter)
Occasional movement : 15D (D=cable diameter)

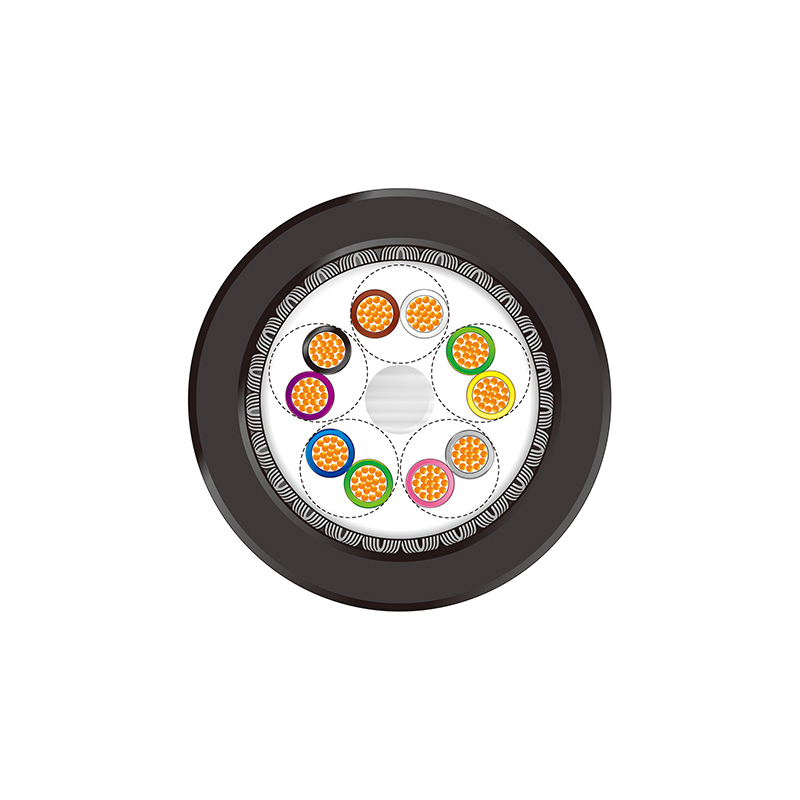

CABLE CONSTRUCTION
Conductor :
7 wires stranded bare copper,according to IEC 60228/VDE 0295
Insulation :
PE
Insulation Color :
According to DIN 47100
Shielded :
Tinned copper braiding
Jacket :
PVC
Color :
Black (similar to RAL 9005)
FEATURES
Flame resistance according to IEC60332-1
Reinforced sheath, suitable for outdoor installation and buried
Conditional oil resistance
Good performance of resistance to external EMI Low Capacitance
