APPLCATION / MARKET
1. Data center & Networking Equipment
2. Servers/Storage Devices
3.SAS/SATA/PCIe HBA Interfaces
4. Switches/Routers
5. Wireless Base Stations and Radios
FEATURES AND BENEFITS

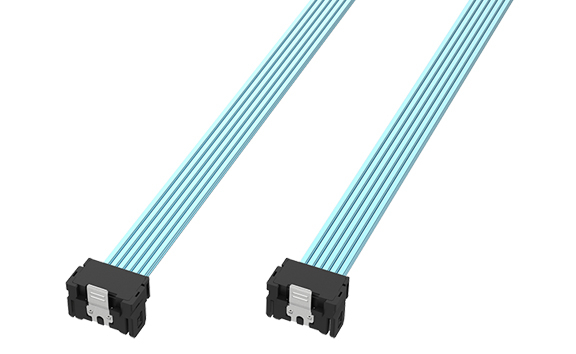

1. Pitch 0.6mm connector design, plug with pull tab
2. 1.57mm PCB card thickness compatible with PCIe riser card
4. Supports 85 ohm impedance applications
5. 34-30AWG cables are optional
6. Straight, right angle, side exit and customization cable plug are optional
7. Supports signaling rates up to PCIe Gen5 and PCIe Gen6
8. Compliance to SFF(SFF-TA-1016)
MECHANICAL PERFORMANCE
1. Latched Mating Force: 4X-31N, 8X-51N,16X-79N,24X-92N Maximum
2. Latched Retention: 4X-4N, 8X-6N,16X-8N,24X-10N Minimum
3. Durability : 200 Cycles
ELECTRICAL PERFORMANCE
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
SIGNAL INTEGRITY
1. PCIe Gen4 and PCIe Gen5
2. OCP Standard
2. Performance Support to Next Generation PCIe 6.0 Requirement
3. Support 56G PAM4
4. Performance Support to Next Generation 112G-PAM4 Requirement
PRODUCT ENVIRONMENTAL COMPLIANCE
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
