LongCar HSD

LongCar HSD can be applied to vehicle-mounted systems, such as vehicle-mounted audio-visual transmission systems. The cable design is a star-quad structure, and uses a double-shielded design of aluminum foil and tinned copper braid to ensure its excellent EMC performance.
Availability:
Quantity:
Inquire Add to Basket

LongCar HSD

  • LongCar HSD

  • zhaolong

TECHNICAL PARAMETERS

—Characteristic impedance

  100±10Ω

—Conductor DC resistance (20℃)

  130Ω/km Max.

—Insulation resistance

  ≥ 100MΩ*Km

—Shield attenuation:

  ≥ 55dB @ 20MHz

  ≥ 40dB @ 1GHz

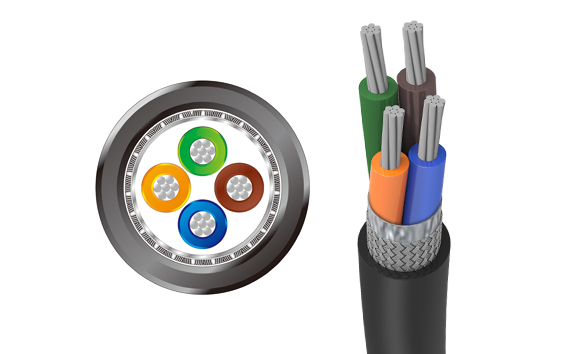

CABLE STRUCTURE

Conductor: tinned copper, bare copper stranded conductor

Insulation: solid PP

Shield: aluminum foil + tinned copper braid

Jacket: PVC

Colour: Black
