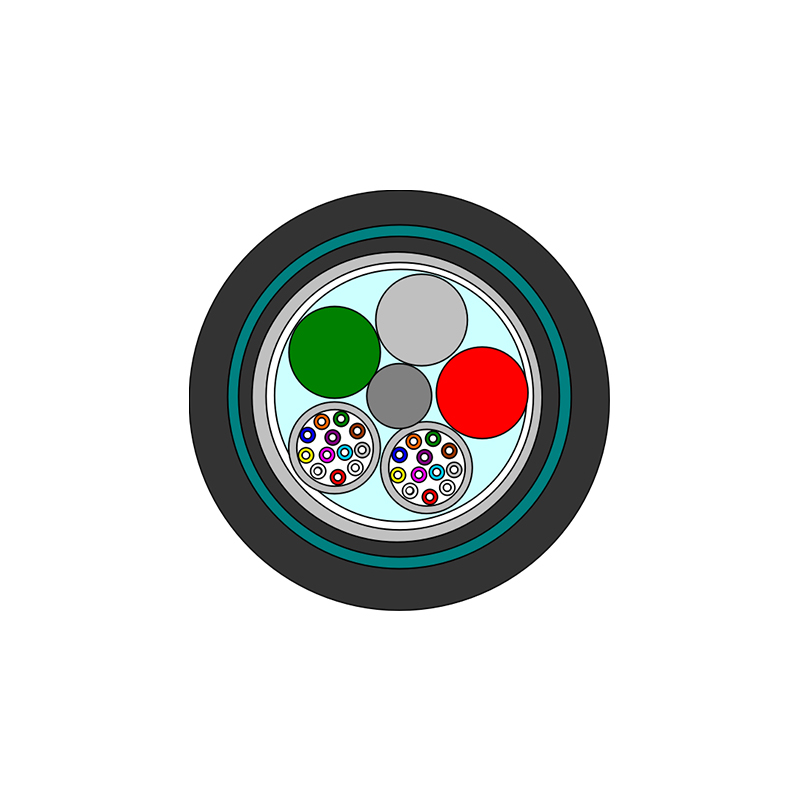

GYTA53 Outdoor Layer Stranded Optical Cable

REFERENCE STANDARD

YD/T 901

MECHANICAL PROPERTIES

Tensile strength (long-term) :

600N

Tensile strength (short-term) :

1500N

Anti-stress (long-term) :

300(N/ 100 mm )

Anti-stress (short-term) :

1000(N /100 mm )

Bending radius (dynamic) :

200 mm

Bending radius (static) :

100 mm

Operating temperature :

-40 °C~ 70 °C

OPTICAL PERFORMANCE

Attenuation (dB/km) :

≤ 0.40(9/125 um，1310 nm)

≤ 0.30(9/125 um，1550 nm)

≤ 3.5(50/125 um，850 nm)

≤ 1.5(50/125 um，1300 nm)
