CAT7 Rolling stockEthernet Cables

TECHNICAL PARAMETERS

—Temperature range: -40℃~80℃

—Characteristic impedance: 100±15Ω

—Insulation resistance: ≥5000MΩ*Km

—Reference standard: EN45545-2, TJ/CL 313, TB/T 1484.3

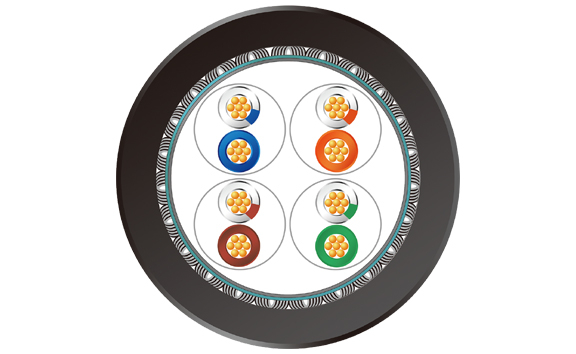

CABLE STRUCTURE

Conductor: Stranded copper conductor

Insulation: PE or foamed PE

Shielding: aluminum foil wrapped and tinned copper braid

Sheath: cross-linked LSZH

Color: black (approximately RAL 9004)

FEATURES

Superior transmission performance

Has good resistance to external electromagnetic interference

High flame resistance, meeting the requirements of IEC60332-1&IEC60332-3-25

Halogen-free, low smoke, low toxicity

Acid and alkali resistance, ozone resistance

Excellent oil resistance

The cable has good resistance to high and low temperature
