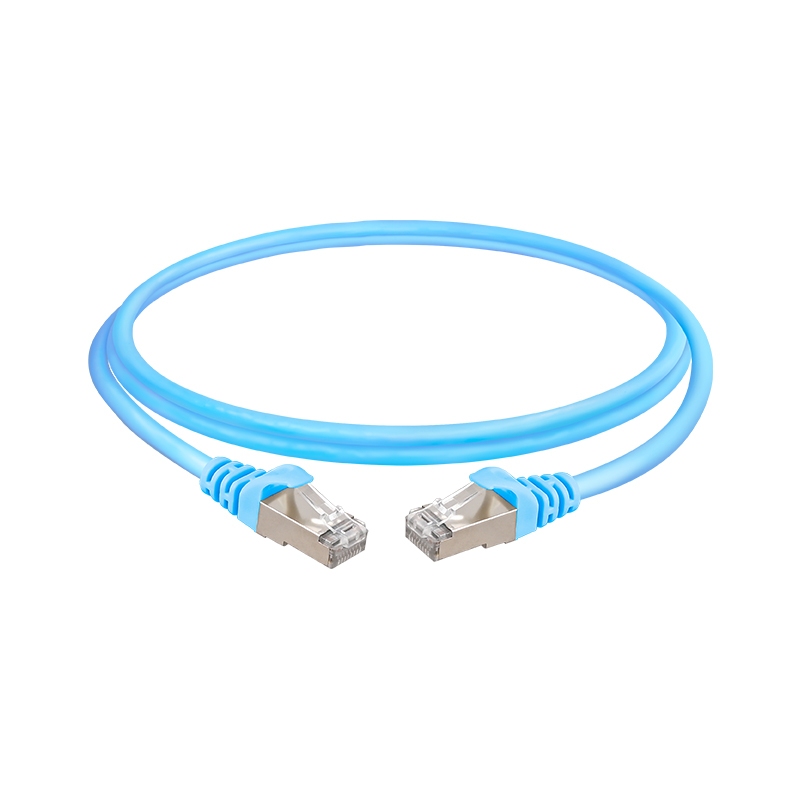

CAT6A Shielded Patch Cords

REFERENCE STANDARD

YD/T 926.3、IEC 60603-7、ANSI/TIA-568.2-D、 ISO/IEC 11801

MATERIAL

Crystal Head:

PC

PIN pin:

phosphor bronze, 50 μ’’ gold plated

Sheath:

LSZH

PHYSICAL PARAMETERS

Plug life:

≥1000 times

Working temperature:

-30 °C~ 60 °C

Storage temperature:

-40 °C~ 68 °C

Relative humidity:

10% ~ 90%

ELECTRICAL PARAMETERS

Insulation resistance:

≥ 500 MΩ withstand voltage

DC current:

1000 VAC

DC:

1.5 Amps

DC Resistance:

≤ 100 mΩ

Contact resistance:

≤ 20 mΩ
