800G HSC-40 32AWG 16P Cable

Zhaolong 800G HSC-40 32AWG 16P Cable is a 8-channel parallel copper cable for storage, data center, and high performance computing connectivity.It offers 8 independent data transmission channels and 8 data receiving channels via the copper cable, the aggregate data rate of 800,000 Mbit over 1 meter transmission can be achieved with this product.
Availability:
Quantity:
Inquire Add to Basket

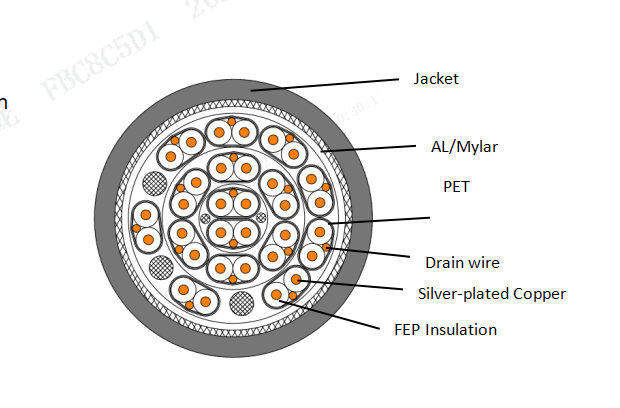

800G HSC-40 32AWG 16P Cable

  • 800G HSC-40 32AWG 16P Cable

  • 兆龙

FEATURES

UP to 1m(DAC) transmission

External O.D：6.8±0.2mm

Low insertion loss

Small bend radius

RoHS compliant

BENEFITS

Tested up to 28GHz

High Reliable

High Flexible

Easy installation


APPLICATIONS

800GHz Ethernet

High-bandwidth switch and router input / output

Network equipment high-density interconnect


GENERAL PRODUCT CHARACTERISTICS

Conductor(nom)                                 1/0.210mm

Insulation diameter(nom)                          0.64mm

Jacket external O.D.(nom)                          6.80mm

Flammability rating                               VW-1

Operating temperature                            -25℃~+80℃

Impedance(Ω)TDR Rise time20%~80%)               100±5Ω(differential)

Delay                                           5.0ns/m(nom.)

Intra-pair Skew                                   ≤10ps/m

Pair-pair Skew                                    ≤50ps/m


OTHER ELECTRICAL PROPERTIES

Attenuation：

Frequency(GHz)

Att.(dB/2m)nom.

Att.(dB/2m)max.

2.50

5.58

6.14

5.00

7.73

8.51

7.50

9.83

10.82

10.00

11.78

12.96

12.89

13.80

15.18

13.28

13.87

15.26

20.00

17.35

19.08

26.56

23.73

26.10

35.00

28.36

31.20

40.00

28.91

31.80


DIFERENTIAL TO COMMON MODE ATTENUATION(MAX):

-20dB/2m(0.01~40GHz)SCD21

SCD21-SDD21(MAX):

-10dB/2m(0.01GHz~12.89GHz)

(29/22)*f-27 dB/2m(12.89GHz~15.7GHz)

-6.3dB/2m(15.7GHz~40GHz)
