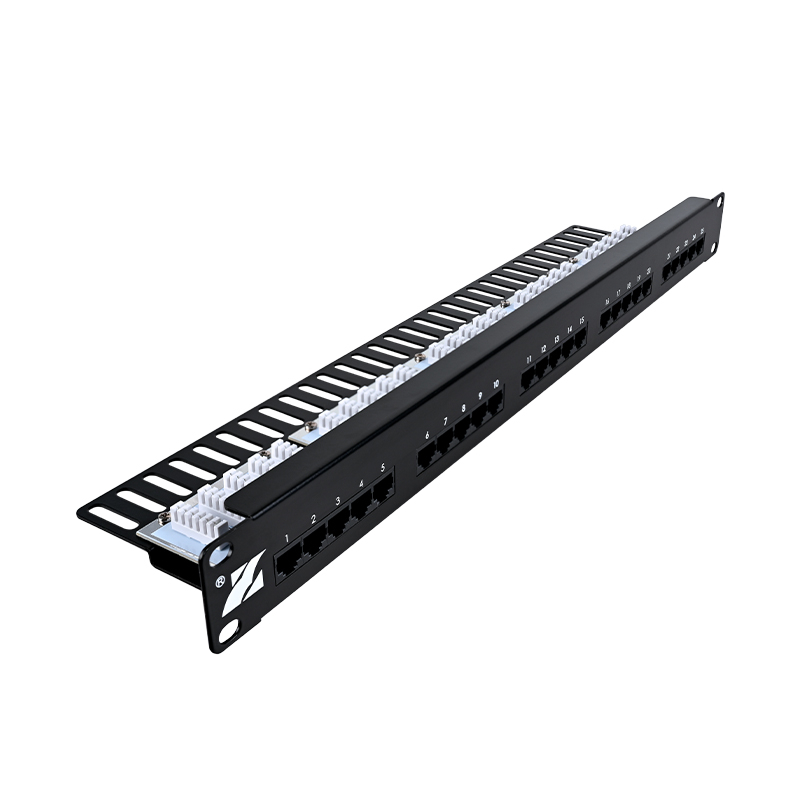

25 Port Voice Panel (RJ45)

Metal plate: high quality cold rolled plate
front endPINNeedle part: phosphor bronze, nickel plated first60μ, Outer tinned120μ, Contact area with plug again 50μGold-plated
Back sideIDCClamping part: phosphor bronze, nickel plating first100μ, Outer tinned200μ
Plastic part: meetUL94V-0
Availability:
Quantity:
Inquire Add to Basket

25 Port Voice Panel (RJ45)

  • zhaolong

PHYSICAL PARAMETERS

Plug life:

750Times

Wiring diameter:

twenty twoTo26AWGSolid conductor

Operating temperature:

-10° C to60° C

storage temperature:

-40° C to68° C

Relative humidity:

10% ~ 90%


ELECTRICAL PARAMETERS

Insulation resistance:

500mΩ

Pressure resistance:

1000VAC

DC:

1.5Amps

DC Resistance:

0.1Ω

Contact resistance:

20mΩ
