Zhaolong’s High-speed Product Line Has Another “New Member” -- MCIO Connector

With high-speed transmission, anti-interference, high reliability and other characteristics, high-speed connectors play a vital role in modern electronic equipment and communication systems. They are widely used in communications equipment, computers, automotive electronics, aerospace and other fields.

MCIO connector is a high-density, high-speed solution that is widely used in servers and data centers, etc, providing strong support for high-performance computing and stable operation of data centers.

Recently, Zhaolong’s high-speed prduct line has another “new member”---MCIO (Mini Cool Edge IO). Zhaolong’s MCIO connector has the following characteristics:

Features and Advantages

1.The connector’s pin pitch is 0.6mm;

2.Comply with SFF-TA-1016 standard;

3.Designed with 85ohm differential impedance;

4.Its SI characteristics meet PCIe 5.0/6.0;

5.Produced in a Fully Automated Production Line, meeting quality requirements.

Connector Type

1.4X (38Pos) , 8X (74Pos), 16X (124Pos) Vertical SMT Type

2. The length of metal shell of the connector varies from 1.5mm to 4.2mm.

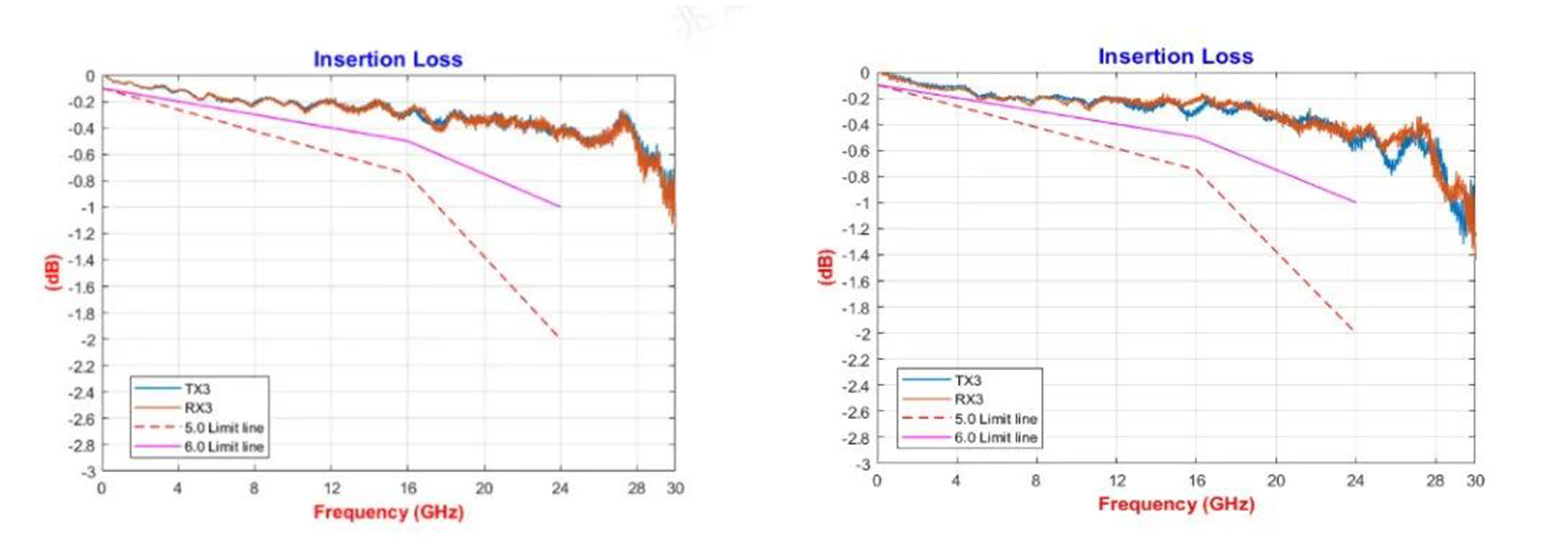

                       MCIO 5.0 SI Test Result                                                 MCIO 6.0 SI Test Result
