With the support of the national policy of "building a Digital China", with the development of the Internet of Things, 5G, big data, cloud computing and artificial intelligence, the market of data center servers (including AI servers) is becoming a hot one. Among them, the normal operation of the server cannot be separated from the safe, high-speed and stable data transmission, and the safe, high-speed and stable data transmission of the server cannot be separated from the help of MCIO Cable Assembly. MCIO Cable Assembly is certainly of great importance.
In 2022, the quantity of the China's server shipments had reached 4.341 million, and the market size had increased to 188.837 billion yuan. The future for the server cable will be bright then~
There are many servers in the data center, so there are many electromagnetic interference between the servers, which puts forward high anti-interference requirements for the fast data transmission of the servers. In order to protect the data security and ensure the smooth operation of the business, in order to respond to the market requirements for the stability and speed of server data transmission, Zhaolong Interconnect has developed MCIO PCI-e 5.0 Cable Assembly series products. With its miniature packaging and excellent SI performance, with complete PCI-e 5.0 support (maximum transmission rate supports 56G PAM4), better space use efficiency, Zhaolong’s MCIO cable assembly can be widely used in applications for the data transmission inside the servers.
The MCIO Cable Assembly features are as follows:
It can support 30AWG 1M of long-distance applications.
We can provide customized solutions.
Support 30AWG ~ 34 AWG and 85 ohm differential impedance design.
SI test standard meets Internal Cable Specification for PCI Express 5.0 and 6.0 Rev0.7.
We provide 4X（38Pos），8X（74Pos），16X（124Pos）and 24X（148 Pos）.
Straight head (STR) / elbow (R / A) & lateral output (LSE / RSE).
The structure and dimensions are in full accordance with the SFF-TA-1016 (MCIO) standard.
The transmission rate supports the one of the PCI-e 5.0 32 GT / s standard; the cable assembly can be downward compatible with PCI-e 4.0.
Self-developed LONGSPEED™ HSC bare wire, providing low-loss and excellent SI performance.
Zhaolong’s MCIO Cable CONN looks like this:

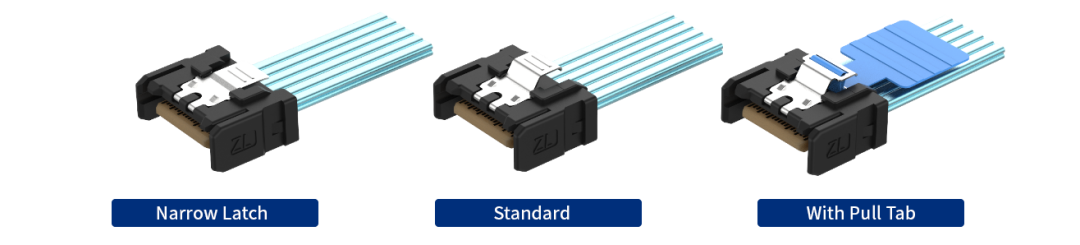

According to the application scenarios, Zhaolong’s MCIO has Narrow Latch, Belt-Pulling(With Pull-Tab) , Anti-oblique Insertion and other standard schemes, as shown in the following figure:
PCI-e 5.0 MCIO 8X Cable SI Result L= 1.0 M
P.S. In the field of telecommunication (data center) field, "Return Loss" means the loss of energy or new loss when certain devices or branch circuits (filters, impedance matchers, etc.) are added to a certain circuit. In general, the lower the insertion loss value is, the better the insertion loss performance is.
About Zhaolong Interconnect
Zhaolong Interconnect, founded in 1993, is a high-tech enterprise that is specialized in the design, manufacture and sales of data cables, special cables and connecting components. It is a full member of China Communication Standardization Association and a drafting unit of national data cable standards. It is one of the few enterprises in the industry that have 400G / 800G connection solutions on the basis of all processes. The company was founded nearly 30 years ago, silent work, little-by-little accumulation, step-by-step forward. Zhaolong’s core technology and product development has been keeping up with Ethernet technology changes. Zhaolong’s products have been exported to more than 100 countries and regions around the world, and have a wide range of applications in 5G communication, cloud computing, data center, smart city, industrial automation, Internet of vehicles, smart home, special applications (medical, wind energy, Marine, locomotive, photovoltaic, nuclear power, aerospace) and other fields.
In response to the country's long-term goal of "carbon peak and carbon neutral" by 2030, efficient and green server (internal cable) solutions are particularly important in large data centers. In the future, Zhaolong Interconnect will also keep investing in research and development as well as laying stress on manufacturing, continue to deepen in the field of data center, keep “to promote the green, low-carbon, sustainable and high-quality development of China's data center” as our goal, increase cooperation with industry partners, and then jointly welcome the arrival of the global digital era!
